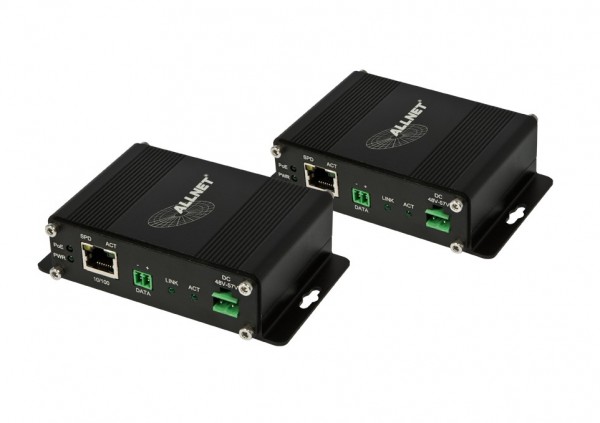

ALLNET Media Converter Bridge/Reciever & Transmitter Power

ALLNET Media Converter Bridge/Reciever & Transmitter Power
Artikelbilder ähnlich, können von der Produkt-Beschreibung abweichen!

net priceplus shipping costs

This product is not available at the moment. Delivery time upon request.

Highlights: PoE+ and Power over Twisted Pair Cable IEEE802.3af/at Compliant Data Rate... more
Product information "ALLNET Media Converter Bridge/Reciever & Transmitter Power"

Highlights:

  • PoE+ and Power over Twisted Pair Cable
  • IEEE802.3af/at Compliant
  • Data Rate up to: 90Mbps (Downlink), 90Mbps (Uplink)
  • Max. Distance : 400m over Twisted pair
  • Accept 48~57VDC external power input or PoE power
    input from RJ45 port

Overview

The ALL-MC301P2WIRE Series product provides Ethernet Extension of 1-CH 10/100Base-TX over Twisted pair cable (400m max.). The products provide high power PoE (30W max Power Sourcing Equipment (PSE) to the network camera or other PoE Device. The products support PoW, hence, no power point is required for the transmitter and the network camera at the transmitter side. The product is good for retrofit of analog system by using the existing cable infrastructure.

Technical Details:

Ethernet

Netzwerk Standards

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3af Power over Ethernet PoE
IEEE 802.3at Power over Ethernet PoE

Cabling

Cat5 or above

Maximum Distance

100m

Connector

1x RJ45

Twisted Pair

Cabling

Twisted pair

Connector

2-pin terminal block

Distance

up to 400m@26AWG

Datarate Downlink

Up to 90Mbps

Datarate Uplink

Up to 90Mbps

Technology

Powerline Communication (PLC)

Electric and Mechanical

Input Power

48-57VDC (Terminal Block) or IEEE 802.3at PD (for ALL-MC301P2WIRE-R only)

Power Consumption

8W max (PoW not in use)
60W max (PoW in use)

Protection Reverse Polarity

Present

LED Indicators

Power= Power Status
Ethernet= SPD, LINK/ACT, PoE (Transmitter)
Twist wire= LINK (Transmitter) / Ready (Receiver) / PoW (Receiver), Activity

PoE Standard

IEEE802.3af/at

PoE Mode

B

Port

RJ45

Max. Power per Port

25,5W max at RX (Powered Device)
30W max at TX (Power Sourcing Equipment)

Dimmension (W x D x H)

114 x 82 x 31mm

Weight

0,25kg

Casing

Aluminium Case

Mounting

Wallmount & DIN-Rail

Environmental

Operating Temperature -10°C to 60°C (14°F to 140°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 90% non-condensing

MTBF

> 100,000 hrs

Regulatory Approvals

ISO9001
FCC Part 15 Class A
EN55022 Class A
Surge Protection
RJ45: 1KV
BNC: 2KV
Power: 500V

ALLNET ALL-MC301P2WIRE-T / Bridge-Transmitter PoE over 2 Wir ALLNET ALL-MC301P2WIRE-R / Bridge-Reicver PoE over 2Wire
