Product information "ALLNET ALL5003EVAL / Development and Evaluation Kit incl. AL"

Development consisting of:

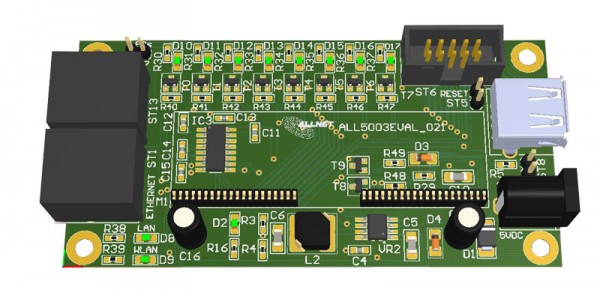

ALL5003EVAL Evaluationboard

ALL5003CPU Board

  • 1x WiFi antenna incl. pigtail
  • 1x LAN cable RJ45
  • 1x 5V Power supply
  • 1x Seriel cable adapter 3-fold


Technical Details ALL5003EVAL:

  • Powered by 5V power supply
  • Dimensions: 100 * 50 mm
  • Console port RS232 to RJ45
  • 1 USB-A-socket (Host)
  • RJ45-socket for Ethernet
  • 8 programmable LEDs
  • 3.3V to supply its own projects
  • 1x 10-pin box header for easy access to the I/O pins of the CPU board
  • 8 LEDss are switched off by jumper
  • Reset & Factory Default can be triggered via jumper
  • 2 additional LEDs for LAN and WLAN Activity

Technical Details ALL5003CPU:

  • CPU: Ralink RT5350, 360 MHz (MIPS)
  • FLASH: 32 MB
  • RAM: 32 MB
  • 7x usable GPIO-Pins
  • 1x USB-Host-Port
  • 1x serial interface (Console)
  • 1x LAN-connection 10/100 Mbit
  • 1x U.FL socket

Dimension:

  • Module-Size: 65 * 21 mm
  • Mounting: any
  • Pin connector pin spacing 1.27 mm single-breasted
  • 2x 20 Pins
