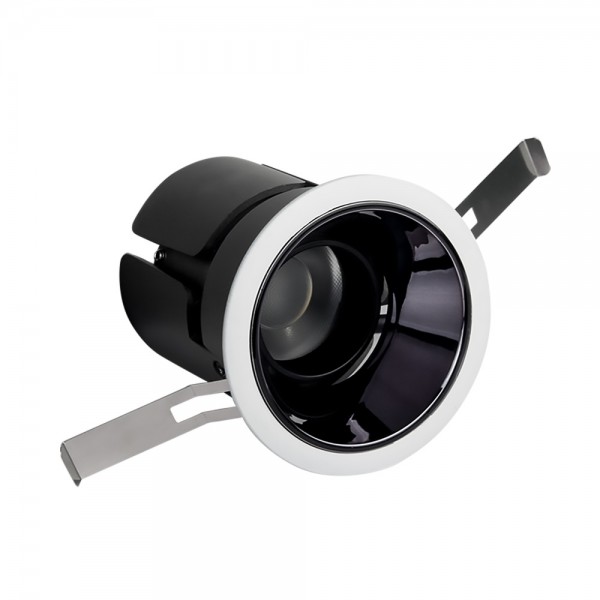

Synergy 21 LED Downlight 9W dualwhite (CCT) mit Zigbee 3,0 + 2,4 GHz HF*Milight/Miboxer*
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 234802
- vendor: Miboxer
- mnufacturer no.: FUT076ZR
- weight: 0.273kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
manual
Handbuch EN
Handbuch ES
Handbuch FR
EU RoHS und REACH Erklärung
Produktname: 9W Deep Anti-glare LED CCT Downlight (Zigbee 3.0 + 2.4G)
Modell Nr.: FUT076ZR
Eingangsspannung: AC100~240V 50/60Hz
Power: 9W
PF: >0,5
CRI : >90
Farbtemperatur: 2700K ~ 6500K
Lichtstrom: 700LM
Lichteffizienz: 78LM/W
Abstrahlwinkel: 24°
Kommunikationsprotokoll: Zigbee 3,0 + 2,4 GHz
Kontrollabstand: Zigbee: 50 m (offener Bereich); 2,4 G RF-Fernbedienung: 30 m
IP-Rate: IP20
Arbeitstemperatur: -10~40°C
Lochdurchmesser: 60mm
Graustufen dimmen: 4096 Stufen
Dimmbereich: 0.1%-100%
Dimmkurve: Logarithmisch
EMV-Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11); ETSI EN 301 489-3 v 2.3.1 (2019-03)
Sicherheitsstandard (LVD): EN 62560:2012+A1; 2015+A11:2019
Funkgerät (RED): ETSI EN 300 440 V2.2.1
Zertifizierung: CE, EMV, LVD, ROT
Energieeffizienz: F
Produktmerkmale:
| Abstrahlwinkel: | 24 |
| CRI: | >90 |
| Dimmbar: | ja |
| EPREL_ANTI_GLARE_SHIELD: | false |
| EPREL_BEAM_ANGLE: | 15 |
| EPREL_BEAM_ANGLE_CORRESPONDENCE: | WIDE_CONE_120 |
| EPREL_CAP_TYPE: | Others |
| EPREL_CHROMATICITY_COORD_X: | 0.320 |
| EPREL_CHROMATICITY_COORD_Y: | 0.339 |
| EPREL_CLAIM_EQUIVALENT_POWER: | false |
| EPREL_COLOUR_CONSISTENCY: | 0 |
| EPREL_COLOUR_RENDERING_INDEX: | 80 |
| EPREL_COLOUR_TUNEABLE_LIGHT_SOURCE: | false |
| EPREL_CONNECTED_LIGHT_SOURCE: | true |
| EPREL_CORRELATED_COLOUR_TEMP: | 2700,6500 |
| EPREL_CORRELATED_COLOUR_TEMP_TYPE: | RANGE |
| EPREL_DIMENSION_DEPTH: | 51 |
| EPREL_DIMENSION_HEIGHT: | 180 |
| EPREL_DIMENSION_WIDTH: | 170 |
| EPREL_DIMMABLE: | YES |
| EPREL_DIRECTIONAL: | DLS |
| EPREL_DISPLACEMENT_FACTOR: | 0.50 |
| EPREL_ENERGY_CLASS: | E |
| EPREL_ENERGY_CONS_ON_MODE: | 15 |
| EPREL_FLICKER_METRIC: | 0.1 |
| EPREL_HIGH_LUMINANCE_LIGHT_SOURCE: | false |
| EPREL_LIGHTING_TECHNOLOGY: | LED |
| EPREL_LUMEN_MAINTENANCE_FACTOR: | 0.50 |
| EPREL_LUMINOUS_FLUX: | 1671 |
| EPREL_MAINS: | NMLS |
| EPREL_MAX_BEAM_ANGLE: | 15 |
| EPREL_MAX_COLOUR_RENDERING_INDEX: | 90 |
| EPREL_MIN_BEAM_ANGLE: | 14 |
| EPREL_MIN_COLOUR_RENDERING_INDEX: | 80 |
| EPREL_POWER_ON_MODE: | 15.1 |
| EPREL_POWER_STANDBY: | 0.40 |
| EPREL_POWER_STANDBY_NETWORKED: | 0.40 |
| EPREL_R9_COLOUR_RENDERING_INDEX: | 23 |
| EPREL_REGISTRANT_NATURE: | MANUFACTURER |
| EPREL_STROBOSCOPIC_EFFECT_METRIC: | 0.1 |
| EPREL_SURVIVAL_FACTOR: | 0.50 |
| Grösse: | 65*60 |
| LED - Gehäusefarbe: | schwarz |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | dual white CCT |
| Lichtfarbe in Kelvin: | 2700~6500 |
| Lumen: | 700 |
| Schutzklasse: | IP20 |
| Volt: | 230 |
| Watt: | 9 |
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 9.00 |
| Lumen: | 700.00 |
| Watt: | 9.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
