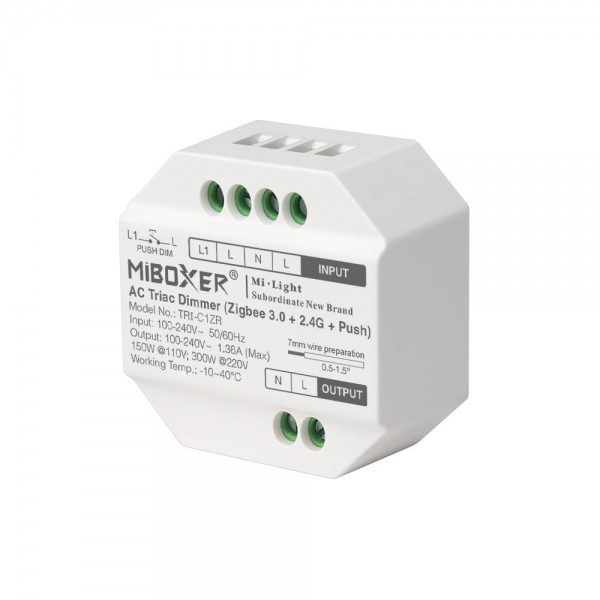

MiBoxer TRI-C1ZR Dimmer Zigbee 3.0 + Push 300W für LED, Halogen, Glühlampe

MiBoxer TRI-C1ZR Zigbee 3.0 300W IP20 dimmer for LED, halogen and incandescent bulbs

The MiBoxer TRI-C1ZR is an AC triac dimmer for stepless brightness control of dimmable LED bulbs, halogen bulbs and traditional incandescent bulbs. It is suitable for use in living spaces, hotels and commercial premises.

Control is possible either via Zigbee 3.0, via a compatible 2.4 GHz remote control or directly via a connected push-button. Via a Zigbee 3.0 gateway, the dimmer can also be controlled using the Tuya Smart app and voice assistants such as Amazon Alexa or Google Assistant.

The integrated automatic forwarding function automatically forwards the remote control signal to other lights, meaning the control range can be extended practically as far as required.

Key features

• Control of dimmable LED, halogen and incandescent bulbs
• 0–100% stepless dimming without flickering
• Adjustable minimum brightness
• Control via Zigbee 3.0, 2.4 GHz remote control or push button
• Automatic Forwarding for virtually unlimited control range
• Integrated over-temperature protection and overload protection
• Tuya Smart app and voice control (Alexa, Google Assistant, etc.) via optional Zigbee 3.0 gateway

Technical specifications

• Manufacturer: MiBoxer
• Model: TRI-C1ZR
• Input voltage: 100–240 V AC, 50/60 Hz
• Output current: max. 1.36 A
• Output power: 150W at 110V / 300W at 220V
• Control protocol: Zigbee 3.0 + 2.4GHz RF + PUSH
• Zigbee range: 100 m in open space
• 2.4 GHz RF range: 30 m
• Protection rating: IP20
• Operating temperature: -10 to +40°C
• Certification: CE, EMC, LVD, RED

Areas of application

• Living spaces with dimmable LED, halogen or incandescent lighting
• Smart home installations with a Zigbee 3.0 gateway
• Hotel and commercial lighting with centralised dimming control
