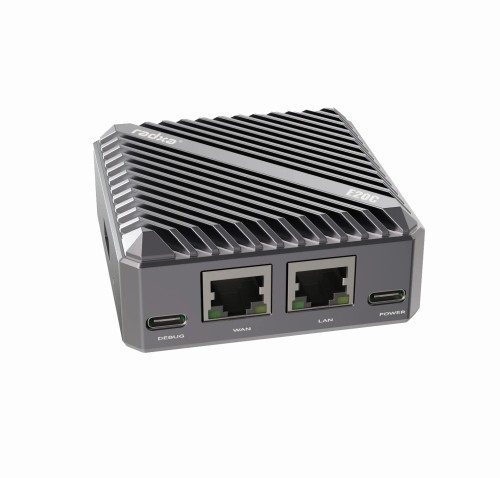

Radxa E20C - 4GB/32GB, RK3528A, RS127-D4E32O1
- stock: 0
- part no.: 235539
- vendor: ALLNET
- mnufacturer no.: RS127-D4E32O1
- weight: 0.085kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity EU RoHS und REACH Erklärung
Radxa E20C - 4GB/32GB, RK3528A, RS127-D4E32O1
RADXA E20C - a Network Computer in an... more
Product information "Radxa E20C - 4GB/32GB, RK3528A, RS127-D4E32O1"
Radxa E20C - 4GB/32GB, RK3528A, RS127-D4E32O1
RADXA E20C - a Network Computer in an ultra-small form factor providing a wide range of networking capabilities.
The Radxa E20C o?ers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.
Hardware overview:
- Rockchip RK3528A SOC with Quad coreARM Cortex-A53
- ARM Mali 450 GPU, supports OpenGL® ES1.1, ES2.0/OpenVG® 1.1
- 1GB/ 2GB/ 4GB LPDDR4 RAM
- onboard eMMC
- H.264, H.265 and AVS2 decoder by 4Kx2K@60fps
- H.264 and H.265 encoder by 1920x1080@60fps
- Aluminum Alloy Case for Efficient Heat Dissipation
Interfaces:
- 1x USB C for debug and data
- 2x Gigabit Ethernet ports
- 1x microSD Card slot
- 1x USB2.0 Type A host port
- 1x maskrom button
- 1x User button
Software:
- ARMv8 Instruction Set
- Debian Linux support
- OpenWrt support
- Hardware access/control library for Linux
Power options and demands:
- via USB C with 5V3A
Peripherals:
- high speed eMMC for OS and data storage
- USB - 1x USB 2.0 HOST Type-A Port and 1x USB Type-C for Debug and Data
- 2 Gigabit Ethernet ports where one can be configured as WAN e.g. via OpenWrt
CE Zertifikate:
https://dl.radxa.com/e/e20c/compliance/
