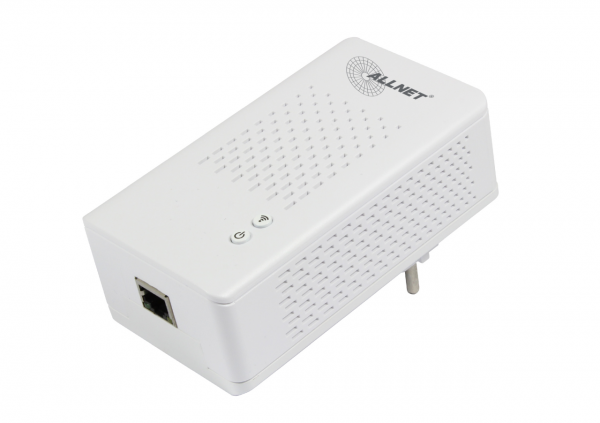

ALLNET Wireless Client with PoE Out 2.4GHz (300Mbps) and 5GHz (867bps) AC ALL-WCL1201P-AC
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 232247
- vendor: ALLNET
- mnufacturer no.: ALL-WCL1201P-AC
- EAN No.: 4038816137449
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Highlights:
- Wireless Client AC Client
- No Powersupply needed, direct conect into AC Wall-Plug
- internal IEEE802.3af/at PoE Injector for PoE devices like IP-Cameras etc.
The ALLNET ALL-WCL1201P-AC Wireless Client is the perfect solution for modern home and office networks requiring reliable wireless and wired connectivity. Equipped with the advanced 802.11b/g/n/ac wireless standard, this device delivers impressive data transfer rates of up to 1200 Mbps. The built-in PoE injector provides power of 55V, 30W via CAT5E/CAT6, enabling you to power compatible devices like IP cameras or VoIP phones directly without the need for additional cables or adapters.
With its compact design, the ALL-WCL1201P-AC is incredibly easy to install and integrates seamlessly into any environment. Direct plug-in to the power outlet eliminates the need for external power supplies, saving space. The integrated LED signal indicator reliably shows signal strength, ensuring you always find the optimal location for the best possible connection.
Setting up and securing your network is a breeze with the WPS button, allowing instant security with a single press. Additionally, the user-friendly web-based interface offers intuitive configuration, enabling you to establish a stable and secure network in no time.
Discover the ALLNET ALL-WCL1201P-AC, an efficient and flexible solution for your networking needs.
Application example:
Technical Details:
| Category | Details |
|---|---|
| Network | RJ-45 x 1 for Ethernet connection (10/100M Auto MDI/MDI-X) |
| Frequency Band | 2.4000~2.4835GHz / 4.94GHz-5.8GHz |
| Maximum Data Rate | 2.4GHz: 300Mbps | 5.8GHz: 867Mbps |
| Output Power | 2.4GHz: 11b@11Mbps: -85±2dBm, 11g@54Mbps: -71±2dBm 11n(20MHz)@MCS15: -67±2dBm, 11n(40MHz)@MCS15: -63±2dBm 5GHz: 11a(54M): -75±2dBm, 11n(20MHz, MCS7): -72±2dBm 11n(40MHz, MCS7): -69±2dBm, 11ac(80MHz, VHTMCS9): -63±2dBm |
| Receive Sensitivity | 2.4GHz: 11b(11M): -86±2dBm, 11g(54M): -72±2dBm 11n(20MHz, MCS7): -71±2dBm, 11n(40MHz, MCS7): -69±2dBm 5GHz: 11a(54M): -75±2dBm, 11n(20MHz, MCS7): -72±2dBm 11n(40MHz, MCS7): -69±2dBm, 11ac(80MHz, VHTMCS9): -63±2dBm |
| Power over Ethernet (PoE) | Provides 55V, 30W for PD (Power Device) |
| Antenna | Internal Antennas x 2 (2.4G x2 nT2R, 5G x1 1T1R) |
| Power Input | AC 100-240V, 50-60Hz |
| Dimensions | 126mm × 70mm × 42mm (L × W × H) |
| Operating Temperature | 0~40°C (32~104°F) |
| Storage Temperature | -20~60°C (-4~140°F) |
| Humidity | Operating: 10~90% (Non-Condensing) |
| Wireless Security | 64/128 Bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Certifications | FCC, CE |
| Plug Types | EU, UK, AU, US, CH |
