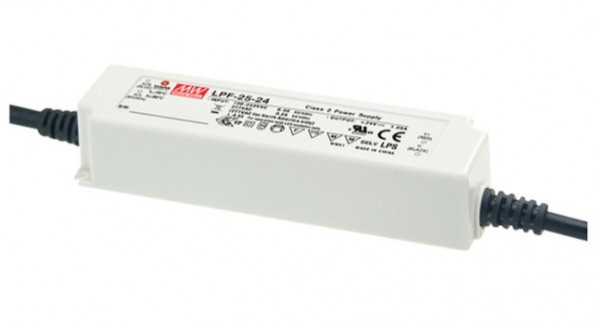

MEANWELL Netzteil - 24V 25W IP67
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 233907
- vendor: Meanwell
- mnufacturer no.: LPF-25-24
- EAN No.: 4711287458380
- weight: 0.36kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
LPF-25-24, IP67, SELV, MM, ENEC
Can CV and CC simultaneously
Input: 90-305VAC
Output: 1.05A,... more
Product information "MEANWELL Netzteil - 24V 25W IP67"
LPF-25-24, IP67, SELV, MM, ENEC
Can CV and CC simultaneously
Input: 90-305VAC
Output: 1.05A, 13.2-24V DC , 25.2 Watt constant current + constant volt
Operating temperature: -40°C to +70°C, see data sheet
LxWxH 148x40x32mm
Protection markings: see data sheet
Open cable ends
Produktmerkmale:
| Ampere: | 0,70 |
| Betriebstemperatur: | -35 bis +70 |
| CC oder CV: | CC + CV |
| Dimmbar: | Nein |
| Grösse: | 148*40*32 |
| Produktname: | Netzteil 24V |
| Schutzklasse: | IP67 |
| Volt: | 13,2 ~24 |
| Watt: | 25,2 |
