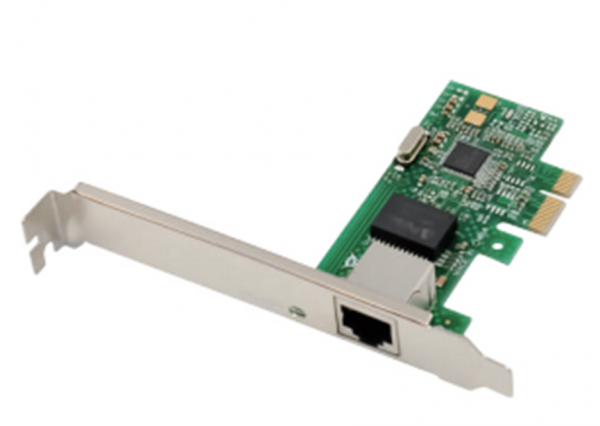

ALLNET PCIe 1G x1 Single Port Desktop Card - ALL0142v2-1G-DTX

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

data sheet DE

EU RoHS und REACH Erklärung

stock: 0
part no.: 227920
vendor: ALLNET
mnufacturer no.: ALL0142v2-1G-DTX
EAN No.: 4038816227928
weight: 1kg
warranty: 12 months
Do you have any questions concerning this product?

Highlights: Single Port 10/100/1000Mbps adapter PCI Express v1.1 x1 lane RJ45... more

Close menu

Product information "ALLNET PCIe 1G x1 Single Port Desktop Card - ALL0142v2-1G-DTX"

Highlights:

Single Port 10/100/1000Mbps adapter
PCI Express v1.1 x1 lane
RJ45 Connectivity
Low-cost, low-power
VLAN Support
Innovative power management features
MSI,MSI-X support
Excellent small packet performance for network appliances
Low profile and full-height bracket

Overview:

ALL0142-1G-DTX is a PCI Express v1.1 x1 manageable Gigabit RJ45 Single Port Network Card.The Card contains two transmit and two receive queues for the single port. It has advanced interrupt-handling,IPv4 and IPv6 checksum offload,TCP/UDP checksum offload features and the Auto-Negotiation (Nway) function ,Jumbo Frame support.With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Supports ACPI, compliant with PCI Express2.1. Full range of drivers are provided for major Operating Systems.

Technical Details:

Controller	Intel I211
Transmission rate per port	10/100/1000Mbps
Network Standard Physical Layer Interfaces	1000BASE-T:Cat 5eor higherup to 100m
	100BASE-Tx:Cat5/5e/6or higherup to 100m
	10BASE-T: Cat3/4/5/5e/6or higherup to 100m
Jumbo Frame Support	Up to 9.5 KB
Operating Temperature	0 °C to 55 °C (32 °F to 131 °F)
Network Virtualization
LED Indicators	1000Mbps/s:Yellow Link and Green Ack,
LED Indicators	100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate
Operating System Support	Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2
	Windows 7 / 8 / 8.1 / 10
	Linux Stable Kernel version 2.6.x / 3.x / 4.x or later
	Linux SLES 10 / 11 or later
	VMvare ESX/ESXi 5.x/6.x or later
