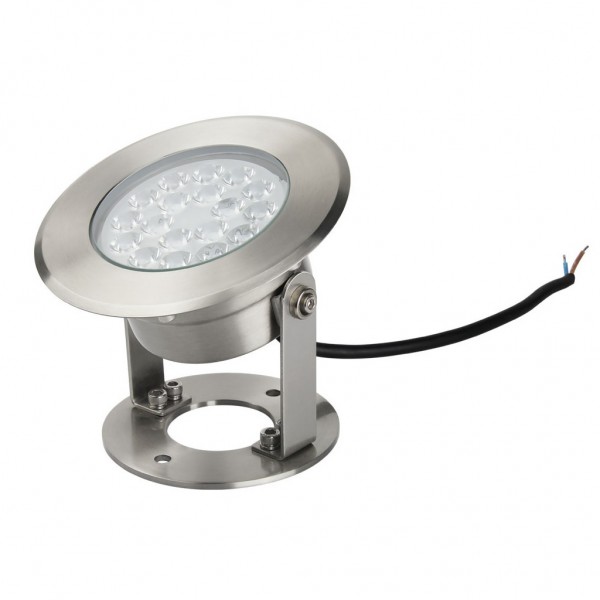

Synergy 21 LED PLC Serie Underwater Light 9W RGB+CCT *Milight/Miboxer*
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 247905
- vendor: Miboxer
- mnufacturer no.: PLC-UW1
- EAN No.: 4038816002198
- weight: 1.387kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
Handbuch EN
EU RoHS und REACH Erklärung
PLC-UW1
Designed by PLC control solution, simple wiring diagram.
Working with master... more
Product information "Synergy 21 LED PLC Serie Underwater Light 9W RGB+CCT *Milight/Miboxer*"
PLC-UW1
Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
- 16 million colours for selection, dimmable for rgb & cct & brightness
- Working with master controller to adjust rgb& cct & brightness & saturation
- Stainless steel 304
- IP68 waterproof
| Product name: | RGB+CCT LED Underwater Light |
|---|---|
| Model no.: | PLC-UW1 |
| Input voltage: | DC24V |
| Power: | 9W(R, G, B: 3W, CW: 7W, WW: 7W) |
| CRI: | >80 |
| Colour temperature: | 2700K ~ 6500K |
| Luminous flux: | 610LM |
| Light efficiency: | 95LM/W |
| Beam angle: | 15° |
| IP rate: | IP68 |
| Working temperature: | -10°~40° |
| WIFI standard: | IEEE 802.11b/g/n 2.4 GHz |
| EMC standard (EMC): | ETSI EN301 489-1 Version 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Safety standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Produktmerkmale:
| Abstrahlwinkel: | 15 |
| Ampere: | 0.375000 |
| Betriebstemperatur: | -10~+40°C |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja, PLC |
| Grösse: | 150*125 |
| LED - Gehäusefarbe: | silber |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K |
| Lumen: | 610 |
| Lumen-Effizienz: | 95 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 9 |
| schwenkbar: | Ja |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 9.00 |
| Lumen: | 610.00 |
| Watt: | 9.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
