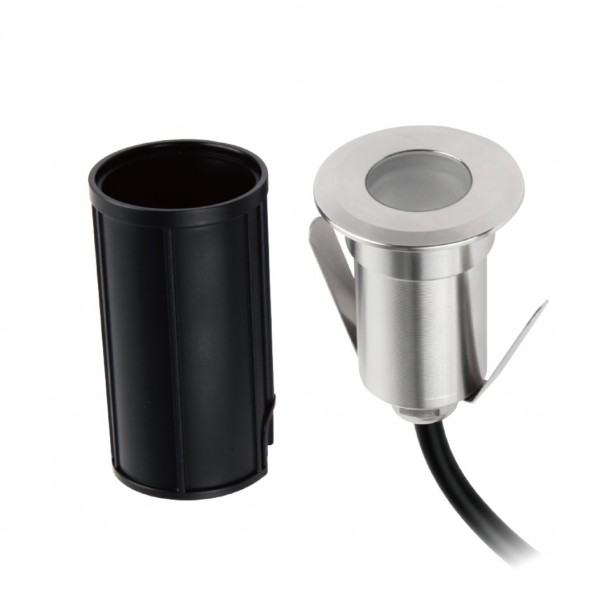

Synergy 21 LED PLC Serie Underground Light 2W RGB-W *Milight/Miboxer*
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 247908
- vendor: Miboxer
- mnufacturer no.: PLC-RD1
- EAN No.: 4038816002167
- weight: 0.68kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
manual
EU RoHS und REACH Erklärung
PLC-RD1
2W RGBW LED Underground Light (PLC)
- 16 million colours for selection, dimmable... more
Product information "Synergy 21 LED PLC Serie Underground Light 2W RGB-W *Milight/Miboxer*"
PLC-RD1
2W RGBW LED Underground Light (PLC)
- 16 million colours for selection, dimmable for rgb& cct& brightness
- Brightness and colour temperature adjustable
- Working with master controller to adjust rgb& cct& brightness& saturation
- IP68 waterproof
Features
Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode...etc, support 2.4G remote control as well.
Parameters
- 16 million colours for selection, dimmable for rgb& cct& brightness
- Working with master controller to adjust rgb& cct& brightness& saturation
- 304 stainless steel
- IP68 waterproof
| Product Name: | RGBW LED Underground Light |
|---|---|
| Model No.: | PLC-RD1 |
| Input Voltage: | DC24V |
| Power: | 2W(R,G,B:1W,CW:2W,WW:1W) |
| CRI: | >80 |
| Colour temperature: | 2700K + RGB - mixed Cool White |
| Luminous Flux: | 60LM |
| Luminous efficiency: | 60LM/W |
| Beam Angle: | 50° |
| IP Rate: | IP68 |
| Working Temperature: | -10~40°C |
| WIFI Standard: | IEEE 802.11b/g/n 2.4GHz |
| EMC standard (EMC): | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3v 2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Produktmerkmale:
| Abstrahlwinkel: | 50 |
| Ampere: | 0.083000 |
| Betriebstemperatur: | -10~+40°C |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja, PLC |
| Grösse: | 42*72 |
| LED - Gehäusefarbe: | silber |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | 304 stainless steel |
| Lichtfarbe: | RGB+CCT |
| Lichtfarbe in Kelvin: | 2700-6500K |
| Lumen: | 60 |
| Lumen-Effizienz: | 60 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 2 |
| schwenkbar: | Nein |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 9.00 |
| Lumen: | 60.00 |
| Watt: | 2.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
