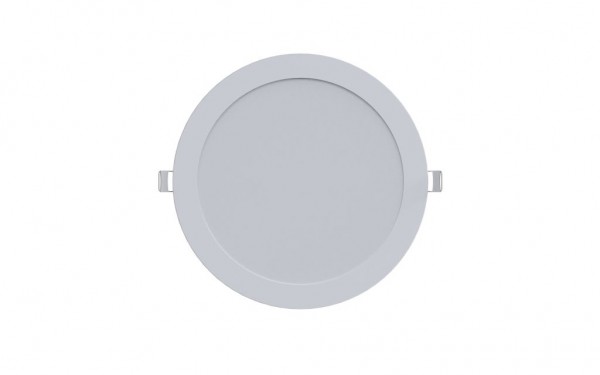

Synergy 21 LED Ultra Slim LED Panel Light V6 20W SWW/WW/NW (3CCT) Weiß
- stock: 0
- part no.: 249326
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-Q250214
- EAN No.: 4038816152251
- weight: 415kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
Ultra Slim LED Panel Light V6 – 3CCT | Flexible light in a slim design
The Ultra Slim LED... more
Product information "Synergy 21 LED Ultra Slim LED Panel Light V6 20W SWW/WW/NW (3CCT) Weiß"
Ultra Slim LED Panel Light V6 – 3CCT | Flexible light in a slim design
The Ultra Slim LED Panel Light V6 with 3CCT technology offers maximum flexibility in lighting design. Thanks to the option of choosing between three colour temperatures, the panel adapts perfectly to any environment and mood - whether warm light for a cosy atmosphere, neutral white for work areas or daylight white for a clear view.
Product features:
- Power consumption: 20 Watt – efficient and powerful
- Luminous flux: 1500 lumen (75 lm/W) – uniform illumination
- Light colour: 3CCT – switchable between 2700K, 4000K and 6000K
- Colour rendering: CRI >90Ra – for natural colour reproduction
- Beam angle: 120° – wide light distribution without shadows
- Material: Aluminium + PC – durable and high quality
- Frame colour: White – modern and stylish
- Protection class: IP20 – for dry indoor spaces
- Working temperature: -20?°C to +40?°C – versatile use
- Power supply: DC 24V – safe and stable
- Maße:
- Outlet diameter: 170 mm
- Installation diameter: 150 mm
- Height: 13 mm
With its ultra-slim design and 3CCT function, this panel is the ideal solution for living rooms, offices or shops looking for a flexible and modern lighting solution
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 0.83 |
| Betriebstemperatur: | -10~+40°C |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | ja, PLC |
| Grösse: | ø240x13mm |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | Aluminium + PC |
| Lichtfarbe: | 3CCT |
| Lichtfarbe in Kelvin: | 2700K/3000K/4000K |
| Lumen: | 1500 |
| Lumen-Effizienz: | 75 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 20 |
| schwenkbar: | Nein |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 20.00 |
| Lumen: | 1500.00 |
| Watt: | 20.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
