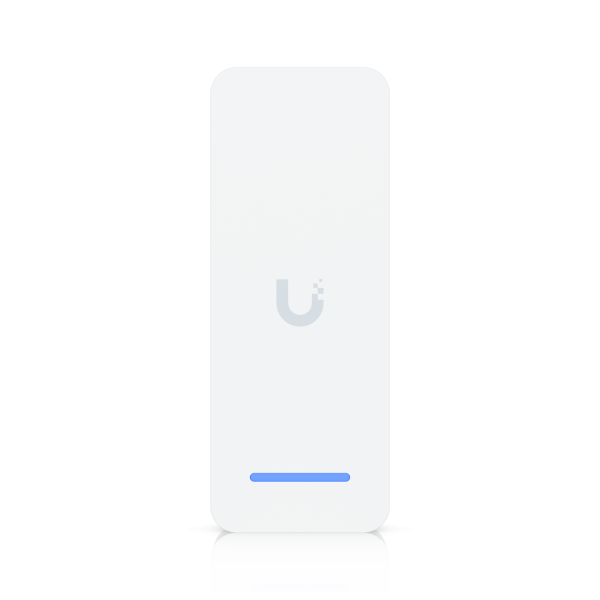

Ubiquiti UniFi Retrofit Reader • white • UA-Retrofit-Reader-W
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 256863
- vendor: Ubiquiti_Enterprise
- mnufacturer no.: UA-Retrofit-Reader-W
- weight: 0.083kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
OSDP reader for indoor and outdoor use with NFC card and TouchPass support, compatible with the... more
Product information "Ubiquiti UniFi Retrofit Reader • white • UA-Retrofit-Reader-W"
OSDP reader for indoor and outdoor use with NFC card and TouchPass support, compatible with the UniFi Retrofit Hub using the existing cabling.
Technical data:
| Dimensions | 117 × 45 × 13.3 mm (4.6 × 1.8 × 0.5") |
|---|---|
| NFC Card & Keyfob Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| NDAA Compliant | Yes |
| Weatherproofing | IP55 |
| Weight | 82 g (2.9 oz) |
| Favourite material | Polycarbonate, aluminium alloy |
| Mounting material | Stainless steel |
| Mounting options | Wall, gang box (incl.), junction box (optional) |
| Application area | Indoor & Outdoor |
| Connectivity | RS-485, BLE 4.1, NFC |
| Security standard | OSDP v2 |
| Power supply | DC 12V |
| Max. Power consumption | 2.5 W |
| Voltage range | 12V DC |
| ESD/EMP protection | Air: ±15?kV, contact: ±8?kV |
| Loudspeaker | Yes |
| LEDs | R/G/B/W |
| Button | 1× Factory Reset |
| NFC frequency | 13.56?MHz |
| NFC read range | < 30 mm (1.18") |
| NFC technologies | ISO 14443A/B, 15693 |
| Supported NFC tags | Tag 1–5, MIFARE Classic, Plus, Ultralight, DESFire |
| Certifications | CE, FCC, IC |
| Operating temperature | –30 to 50°C (–22 to 122?°F) |
| Humidity (operation) | 5–90% non-condensing |
| Management software | Access |
| Software version info | https://unifi.ui.com |
