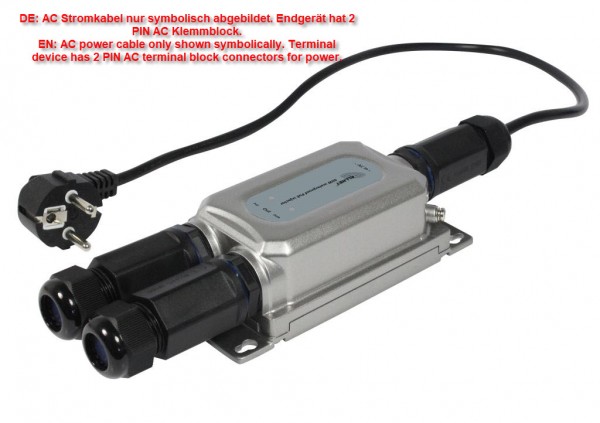

ALLNET Outdoor PoE Injector IP67 IEEE802.3bt (15.4W/30W/60W) Metal Housing / ALL-PI2013Ov2BT60
- stock: 0
- part no.: 257252
- vendor: ALLNET
- mnufacturer no.: ALL-PI2013Ov2BT60
- EAN No.: 4038816257253
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
Handbuch EN
Quick Install Guide DE
Guide d'installation EN
EU RoHS und REACH Erklärung
Highlights:
- 60 Watt PoE IP67 outdoor injector according to IEEE802.3bt standard
- IP67 weatherproof & IK10 shockproof for robust outdoor installations
- 1x 10/100/1000/2500Base-TX PoE output according to IEEE802.3af/at/bt 60W
- 1x AC 100~240V input voltage on 2PIN terminal (AC connection cable must be installed by the customer, thus flexible in installation)
- Extended operating temperature: -20°C to +60°C
This product is an outdoor Gigabit Power-over-Ethernet (PoE) device for powering most common IP end devices. The injector is fully compliant with the IEEE 802.3af/at/bt standard. The device also fulfils the IP67 protection class, making it weatherproof and easy to use outdoors. The injector is shock-resistant thanks to the IK10 standard, which ensures reliable and safe use, even in industrial environments.
Compared to the previous version (v1), the ALL-PI2013Ov2BT60 now has a 2.5GBase-T connection and therefore enables a significantly higher data transfer rate.
It transmits the required electrical energy and realises the data exchange via an RJ45 cable with a maximum transmission distance of 100 metres. The injector automatically recognises which PoE standard is present at the end device on the output side and regulates the voltage accordingly. The injector can supply a PoE end device at the output with a maximum power of 60W in accordance with the IEEE 802.3bt standard.
Technical details:
Technical details:
| Model: | ALL-PI2013OBT60 - 60W waterproof PoE injector AC to BT 60W |
|
IEEE standard: |
IEEE 802.3 10Base-T Ethernet |
|
Network Media (Cable): |
10BASE-T: UTP category 3,4,5 cable (=100m) |
Network Connector: |
1xRJ-45 10/100/1000BaseT(X) Data 1xRJ-45 10/100/1000/2500BaseT(X) PSE with POE Output power IEEE802.3bt 60W |
|
Input current: |
1.5A Max |
Power input: |
AC 100-240V 50/60Hz 2 PIN terminal |
PoE Power output: |
60W Max. IEEE802.3bt |
|
POE Pin Assignment RJ45: |
1/2(-), 3/6(+) |
Output Voltage: |
DC 55V±5% |
Output ripple voltage: |
=200mV,Test conditions: rated input voltage, full load output, Tested with 20MHz bandwidth oscilloscope, Parallel connected a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to the output |
Output current: |
1.1A Max |
LED Indicator: |
PWR(Green) , PoE(Bt:Green,UPoE:orange) |
|
Dimming: |
150 x 73 x 44mm |
|
Operating Temperature: |
-20°C ~ 60°C |
Storage Temperature: |
-40°C ~ 80°C |
Surge Protection: |
Difference Mode:±4KV, Common mode:±6KV |
MTBF: |
<50000 hours |
Electrostatic standard: |
Contact 6KV, air 8KV |
Waterproof grade: |
IP67 |
impact protection rating |
IK10 |
Produktmerkmale:
| Einsatzbereich Display: | Industrie |
| Gehäuse: | Metall |
| Geschwindigkeit Injektor: | 1G (1000Mbit), 10M (100Mbit), 100M (100Mbit) |
| PoE Leistung: | 15, 30, 60 |
| PoE Standard: | IEEE802.3af, IEEE802.3bt, IEEE8023at |
