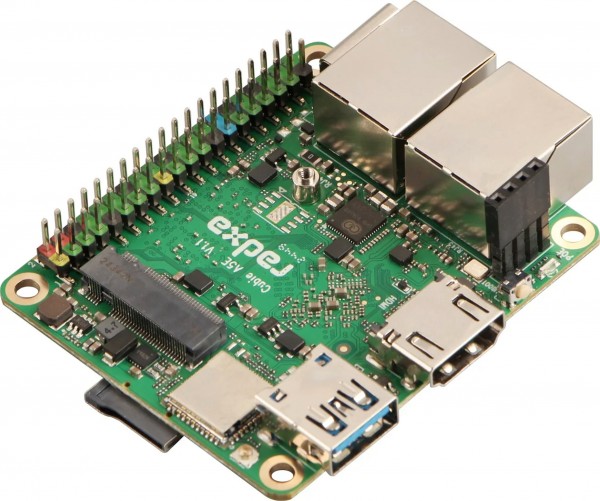

Radxa Cubie 5AE - 4GB (no EMMC) Radxa Cubie 5AE - 1GB (no EMMC) RS500-D1E0G0J0R38S16

RADXA Cubie A5E

Allwinner A527 / T527 (industrial) powered tiny and compact SBC by RADXA

Processor

Allwinner A527 / T527 SoC
- Quad-Core ARM® Cortex®-A55 @1.8GHz & Quad-Core ARM Cortex-A55 @1.4GHz
- RISC-V CPU up to 200MHz
- NPU computing power up to 2TOPS (T527 SoC, theoretical peak performance)

ARM Mali™ G57 MC1 GPU
- OpenGL® ES 3.2/2.0/1.1
- Vulkan® 1.1/1.2/1.3
- OpenGL™ 2.2

RAM

LPDDR4 RAM

1GB /2GB /4GB

Onboard eMMC (depending on product variant)

8GB /16GB /32GB

Onboard SPI Flash for Bootloader

• H.265MP/VP9 multivideo decoder up to 4K@60fps
• H.264BL/MP/HP multivideo decoder up to 4K60fps
• H.264BP/MP/HP multivideo encoder up to 4K@25fps
• MJPEG encoder up to 4K@15fps, JPEG encoder up to 8K x 8K resolution
• Supports AES/DES/3DES/SM4 encryption and decryption algorithms

Interfaces

Display

1x HDMI® port up to 4Kp60

1x MIPI DSI Interface (four lane MIPI DSI)

Wireless

IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.4 with BLE (external Antenna Conn)

Storage

1x Micro SD card slot

1x M.2 M Key Connector with PCIe 2.1 1-lane for M2 2230 NVMe SSD

USB

1x USB 3.0 5Gbps Type A HOST Port (USB3 HOST and PCIe 2.1 share some HW resources, requires software driven multiplexing)

1x USB 2.0 Type-C® OTG/HOST port for Data and Power

Ethernet

2x Gbit LAN Port with (1x PoE support via optional PoE hat)

GPIO

40-pin expansion header supporting:

• UART, I2C, SPI, GPIO, PWM

• 2 x 5V DC power in/out
• 2 x 3.3V DC power out

Other

• 1x power button


Software

·Debian Linux® support

·Android™ 13 support (Android 13 support requires the official BSP or vendor-provided SDK. Actual feature set may depend on further validation and licensing)

· Hardware access/control library for Linux

Power

USB Type-C with min 5V/3A ( alternative via PoE HAT)

Size

56mm x 65mm

Operation temperature:

0°C to 60°C

Certifications:

FCC, CE, RoHS

Availability:

until at least September 2032
