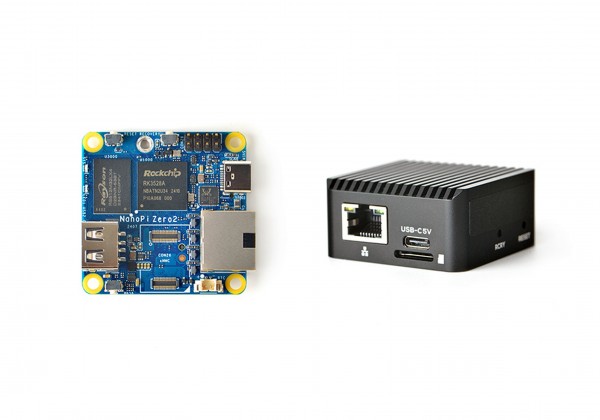

FriendlyELEC Zero2 Combo with Case 1GB

FriendlyELEC Zero2 Combo with Case 1GB

• SoC: Rockchip RK3528A
  • CPU: Quad-core ARM Cortex-A53
  • GPU: ARM Mali-450 GPU
  • VPU: 4K H265/H264 60fps decoding
• RAM: 1GB/2GB LPDDR4/LPDDR4X
• Flash: Supports eMMC Module
• Ethernet: one Native Gigabit Ethernet
• M.2 Key-E 2230 connector with PCIe 2.1
• USB Ports:
  • One USB 2.0 Host Type-A port
  • One USB 2.0 Device Type-C port for eMMC upgrade
• One microSD Slot
• One 30-pin FPC GPIO connector
• Debug: Debug UART, 3.3V level, 1500000bps
• LEDs: 2 x GPIO Controlled LEDs (SYS & LED1)
• others:
  • 2 Pin 1.27/1.25mm battery connector for Low-power RTC
  • RESET Button, RECOVERY Button, and MASK Button for eMMC upgrade
• Power supply: DC 5V/2A, via USB-C connector or 2.54mm Header
• PCB Size: 45*45*1.2mm
• Temperature measuring range: 0? to 80?

https://wiki.friendlyelec.com/wiki/index.php/NanoPi_Zero2
