DRAGINO · Sensor · LoRa · Waterflowsensor G1?? / DN25 · SW3L-EU868
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 215270
- vendor: DRAGINO
- mnufacturer no.: SW3L-EU868-010
- weight: 0.085kg
- warranty: 24 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
There is an alternative article for this product!
DRAGINO LoRaWAN Outdoor Flow Sensor G1'' / DN25
Overview

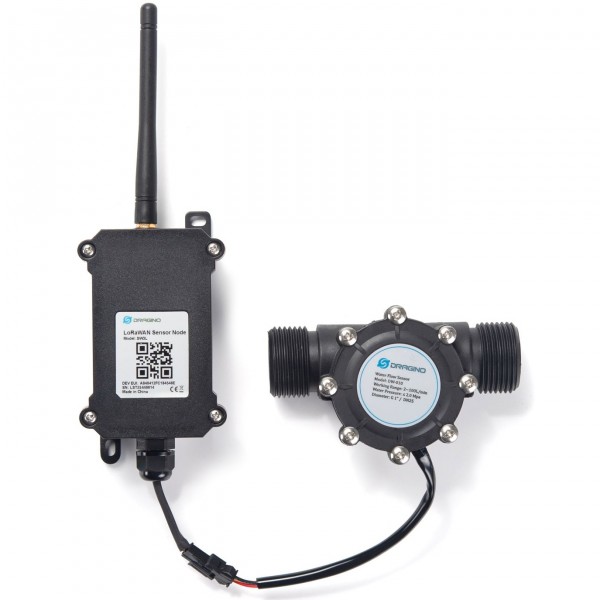

The Dragino SW3L is a LoRaWAN Flow Sensor. It detects water flow volume and uplink to IoT server via LoRaWAN network. User can use this to monitor the water usage for buildings.
SW3L is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 10 years. (Actually Battery life depends on the use environment, update period.)
The SW3L will send water flow volume every 20 minutes. It can also detect the water flow status and send Alarm, to avoid the waste for water usage such as broken toilet case.
SW3L is designed for both indoor and outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures.
Each SW3L is pre-load with a set of unique keys for LoRaWAN registration, register these keys to LoRaWAN server and it will auto connect after power on.
Features
- LoRaWAN v1.0.3 Class A protocol
- Band:EU868
- Upload water flow volume
- Monitor water waste
- 8500mAh industrial battery(none-rechargeable)
- AT Commands to change parameters
- Uplink on periodically and open/close event
- Datalog feature
- Remote configure parameters via LoRa Downlink
- Firmware upgradable via program port
- Wall Mountable
- Outdoor Use
Usecases
- Flow Sensor application
- Water Control
- Toilet Flow Sensor
- Monitor Waste water
Lieferumfang
-
1 x DRAGINO LoRaWAN Outdoor Flow Sensor G1'' / DN25 · SW3L-EU868-010
