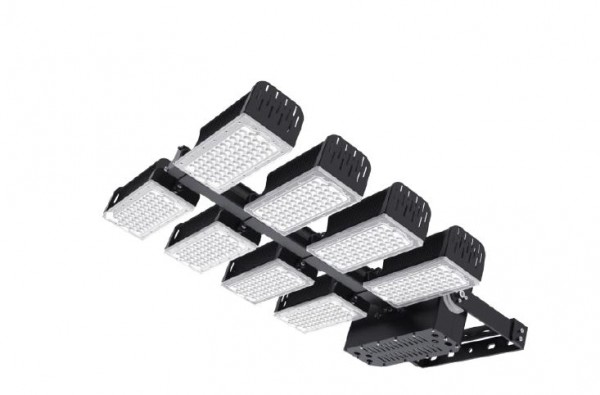

Synergy 21 LED object/stadium spotlight 960W IP66 cw
- stock: 0
- part no.: 154897
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB001309
- EAN No.: 4038816077110
- weight: 24.8kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
manual
EU RoHS und REACH Erklärung
Operating voltage: AC 90-305V, 50/60Hz
LED: 496 LED Philips Lumileds 165lm/Watt
Power supply unit: MeanWell
Beam angle: Lens 90°, light heads variably adjustable (swivelling and tilting)
Beam angles with 10°, 30° or 60° also available on request.
Lumen: 158,400lm
Efficiency: 165Lm/Watt
Light colour: 5000K ±150
CRI: Ra>70
Dimmable: no (Dimmable models such as DALI or 0-10V on request)
Housing: Aluminium
Operating temperature: -40°C to +60°C
Protection class: IP66
Dimensions: 846*202*579mm
Energy efficiency class: A++
kWh/1000h: 960
The connection of electrical components and systems may only be carried out by
only be carried out by qualified specialists!
Produktmerkmale:
| Abstrahlwinkel: | 90 |
| CRI: | >80 |
| Dimmbar: | Nein |
| Grösse: | 846*202*579 |
| LED - Gehäusefarbe: | schwarz |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 5000 |
| Lumen: | 158400 |
| Schutzklasse: | IP66 |
| Volt: | 230 |
| Watt: | 960 |
