Synergy 21 LED spot pendant luminaire UFO 120W for industry/warehouses cw 60°

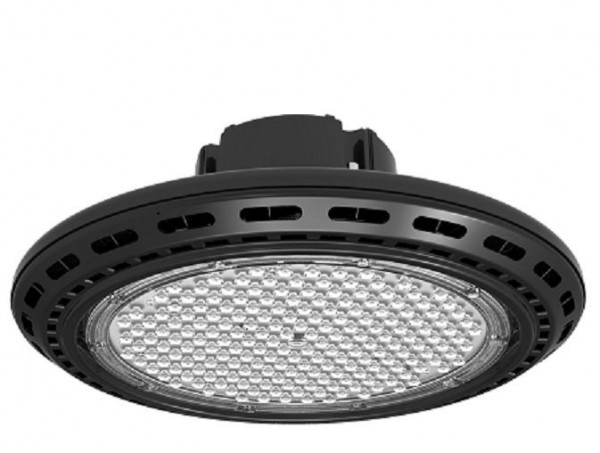

Preview: Synergy 21 LED spot pendant luminaire UFO 120W for industry/warehouses cw 60°

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

Due to the holiday "Heilige drei Könige" your order will not be dispatched until the next working day.

Downloads

data sheet DE

data sheet EN

Lichtberechnungsdatei

EU RoHS und REACH Erklärung

stock: 0
part no.: 136176
vendor: Synergy 21 LED
mnufacturer no.: S21-LED-UFO0014
EAN No.: 4038816059987
weight: 4.8kg
warranty: 60 months
Do you have any questions concerning this product?

AC 90-305V/50-60Hz Dimmable: no Power: 120 Watt Luminous flux: 16000 lm Efficiency: 135lm/W... more

Close menu

Product information "Synergy 21 LED spot pendant luminaire UFO 120W for industry/warehouses cw 60°"

AC 90-305V/50-60Hz
Dimmable: no
Power: 120 Watt
Luminous flux: 16000 lm
Efficiency: 135lm/W
Beam angle: 60°
CRI Ra: > 80
Light colour: cool white
Kelvin: 6500K ± 10%
Operating temperature: -40 to +55°C
Protection class: IP65, IK10, "D" mark according to EN 60598-2-24
Weight: 4.8kg
Diameter: 260mm
Complete height: 177.5mm

Energy efficiency class: A++
kWh/1000h: 120

5 year guarantee
IES files available on request

Produktmerkmale:

Abstrahlwinkel:	60
Betriebstemperatur:	-40 bis +55
CRI:	>80
Dimmbar:	Nein
Grösse:	260*177,5
LED - Gehäusefarbe:	schwarz
LED - Gehäuseform:	rund
LED - Gehäusematerial:	Aluminium
Lichtfarbe:	kaltweiss
Lichtfarbe in Kelvin:	6500
Lumen:	16000
Schutzklasse:	IP65/IK10
Volt:	230
Watt:	120
