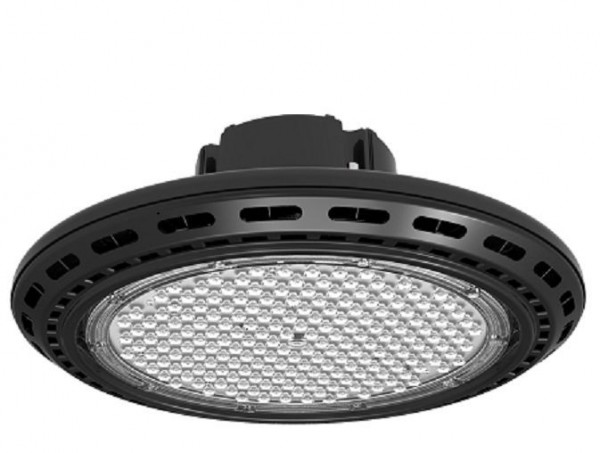

Synergy 21 LED spot pendant luminaire UFO 150W for industry/warehouse

Preview: Synergy 21 LED spot pendant luminaire UFO 150W for industry/warehouse

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

Due to the holiday "2. Weihnachtstag" your order will not be dispatched until the next working day.

Downloads

data sheet DE

data sheet EN

Lichtberechnungsdatei

EU RoHS und REACH Erklärung

stock: 0
part no.: 158872
vendor: Synergy 21 LED
mnufacturer no.: S21-LED-UFO0102
EAN No.: 4038816158871
weight: 4.8kg
warranty: 60 months
Do you have any questions concerning this product?

AC 90-305V/50-60Hz Dimmable: 1-10 Volt Power: 150 Watt Luminous flux: 20250lm Efficiency:... more

Close menu

Product information "Synergy 21 LED spot pendant luminaire UFO 150W for industry/warehouse"

AC 90-305V/50-60Hz
Dimmable: 1-10 Volt
Power: 150 Watt
Luminous flux: 20250lm
Efficiency: 135lm/W
Beam angle: 120°
CRI Ra: > 80
Light colour: warm white
Kelvin: 3000K ± 10%
Operating temperature: -40 to +55°C
Protection class: IP65, IK10, "D" labelling according to EN 60598-2-24
Weight: 4.8kg
Diameter: 325mm
Complete height: 187.5mm

Energy efficiency class: A++
kWh/1000h: 150

5 year guarantee
IES files available on request

Produktmerkmale:

Abstrahlwinkel:	120
Betriebstemperatur:	-40 bis +55
CRI:	>80
Dimmbar:	0-10V
Grösse:	260*177,5
LED - Gehäusefarbe:	schwarz
LED - Gehäusematerial:	Aluminium
Lichtfarbe:	warmweiss
Lichtfarbe in Kelvin:	3000
Lumen:	20250
Schutzklasse:	IP65, IK10
Volt:	230
Watt:	150
