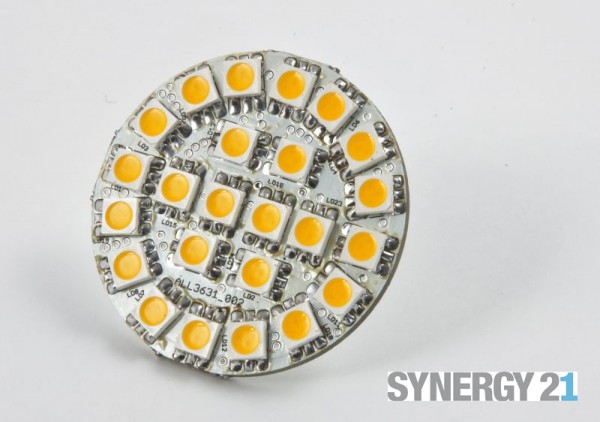

Synergy 21 LED Retrofit G4 24x SMD 5050 ww rear pins
- stock: 0
- part no.: 90104
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM00069
- EAN No.: 4038816999924
- weight: 0.03kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet ES
EU RoHS und REACH Erklärung
- LED G4 24x SMD LED 5W warm white
- Backpin
- Colour temperature: 3000K ±250
- Luminous flux: 480 lumen
- Beam angle: 120°
- SMD 5050
- 12V AC/DC
- Diameter 44mm, t=8.5mm without PINS
- Length of pins: 1cm
Attention:
Please only use regulated or switching power supplies with the Synergy 21 LED GX5.3/MR16 spots.
Do NOT use halogen transformers or wound power supplies, otherwise there is a risk of the LED being destroyed by overvoltage.
Please be sure to measure the voltage beforehand.
We recommend using the Synergy 21 DM830 digital multimeter to measure the voltage.
Please note that Synergy21 LED retrofit lamps may only be operated at an operating temperature between 0-50 C°.
In the event of deviations, the service life of the LEDs cannot be guaranteed!
Energy efficiency class: A++
kWh/1000h: 5
Produktmerkmale:
| CRI: | 80 |
| Dimmbar: | Nein |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 480 |
| Sockel: | G4 |
| Volt: | 12 |
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 5,00 |
| Lumen: | 480 |
| Watt: | 5,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
