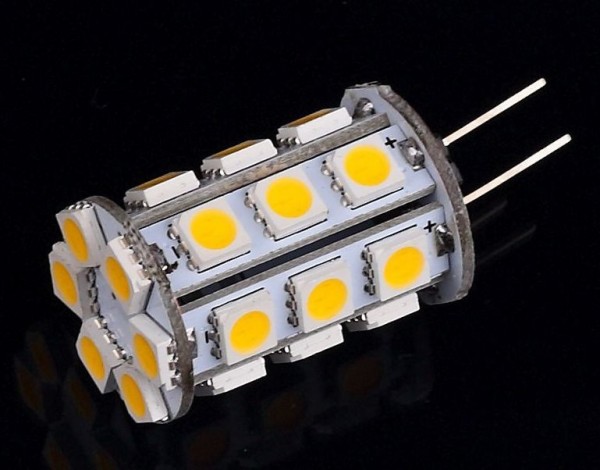

Synergy 21 LED-Retrofit G4 3W Bullet ww
-
Last Stock Article
- stock: 0
- part no.: 111819
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB00075
- EAN No.: 4038816023858
- weight: 0.05kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN data sheet ES EU RoHS und REACH Erklärung
- Pins below
- warm white 3000K ±250, 200Lm
- Beam angle: 360 °
- 12V AC/DC, 3W
-... more
Product information "Synergy 21 LED-Retrofit G4 3W Bullet ww"
- Pins below
- warm white 3000K ±250, 200Lm
- Beam angle: 360 °
- 12V AC/DC, 3W
- Dimensions: 50mm x 20mm
- Working temperature: 20 ~ 40 °C
Attention:
Please only use regulated or switching power supplies with the Synergy 21 LED GX5.3/MR16 spots.
Do NOT use halogen transformers or wound power supplies, otherwise there is a risk of the LED being destroyed by overvoltage.
Please be sure to measure the voltage beforehand.
We recommend using the Synergy 21 DM830 digital multimeter to measure the voltage.
Please note that Synergy21 LED retrofit lamps may only be operated at an operating temperature between 0-50 C°.
In the event of deviations, the service life of the LEDs cannot be guaranteed!
Energy efficiency class: A+
kWh/1000h: 3
Produktmerkmale:
Ampere: | 0.25 |
Betriebstemperatur: | -20 bis +40 |
CC oder CV: | CV |
CRI: | 80 |
Dimmbar: | Nein |
Grösse: | 50*20 |
Lichtfarbe: | warmweiss |
Lichtfarbe in Kelvin: | 3000 |
Lumen: | 200 |
Schutzklasse: | IP20 |
Sockel: | G4 |
Volt: | 12 |
