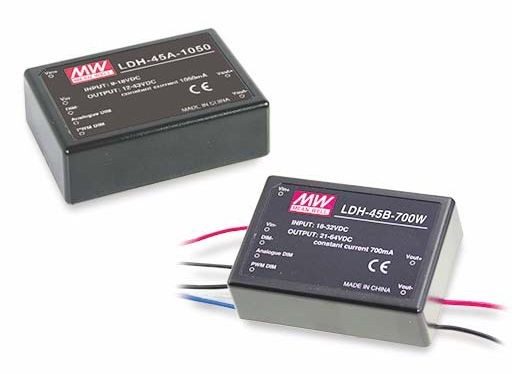

Mean Well power supply - CC Driver DC-DC step-up 350mA ~30W dimmable
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 122975
- vendor: Meanwell
- mnufacturer no.: LDH-45A-350W
- EAN No.: 4711287455242
- weight: 0.138kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
PWM + analogue dimming, see data sheet for details
Analogue dimming: 0.25V-1.3V DC input... more
Product information "Mean Well power supply - CC Driver DC-DC step-up 350mA ~30W dimmable"
PWM + analogue dimming, see data sheet for details
Analogue dimming: 0.25V-1.3V DC input voltage (0V =off, >1.3V =on)
PWM dimming: 1-10kHz at input level of 2-8V (0% =off)
Input: 9~18VDC, rated: 12VDC
Output: 350mA, 12~86VDC, 30.1W
Operating temperature: -40°C to +70°C
LxWxH 75*53*22.7mm
Connection via cable
please note data sheet!!!
The connection of electrical components and systems may only be carried out by
by qualified personnel only!
Produktmerkmale:
| Ampere: | 0.35 |
| Betriebstemperatur: | -40 bis +70 |
| CC oder CV: | CC |
| Dimmbar: | ja |
| Grösse: | 75*53*22,7 |
| Schutzklasse: | IP20 |
| Volt: | 12-86 |
| Watt: | 30 |
