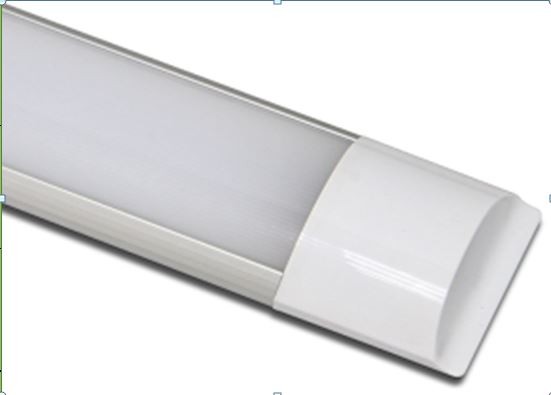

Synergy 21 LED T5 Batten Lights 120cm, cool white IP65 V2
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 150955
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-001060
- EAN No.: 4038816150950
- weight: 1kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
T5 Batten Lights 120cm
Volt: AC 100-240V
Wattage: 40 Watt
Light colour: cool white
Kelvin:... more
Product information "Synergy 21 LED T5 Batten Lights 120cm, cool white IP65 V2"
T5 Batten Lights 120cm
Volt: AC 100-240V
Wattage: 40 Watt
Light colour: cool white
Kelvin: 5700k
Beam angle: 120°
Lumen: 3320-3360lm
Operating temperature: -20° + 45° C
CRI: >80
Protection class: IP65
Length: 1210 mm
Width: 78.4 mm
Height: 28.2 mm
Weight: 0.600
Open cable end
Cable length 1.6m
Energy efficiency class: A+
kWh/1000h: 40
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Betriebstemperatur: | -20 bis +45 |
| CRI: | >80 |
| Dimmbar: | Nein |
| Grösse: | 1210*78,4*28,2 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäusematerial: | Kunststoff |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 5700 |
| Lumen: | 3340 |
| Schutzklasse: | IP65 |
| Volt: | 230 |
| Watt: | 40 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 40.00 |
| Lumen: | 3340.00 |
| Watt: | 40.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
