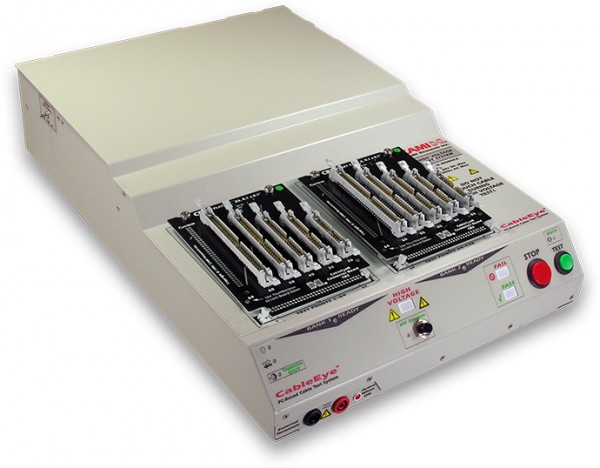

CableEye 829 / HVX High Voltage Test System 2100VDC/1200VAC

The HVX-21 is the high voltage tester of the CableEye series for measurements up to 2100VDC/1200VAC. In the low voltage range up to 10V it offers the same functionality as the M3U. In addition, it is possible to test the insulation resistance of the respective test piece with an adjustable voltage up to 2100VDC/1200VAC.

The CableEye HVX offers:

• 128 (152) test points, expandable by 128 to 1024 test points each
• Check for continuity, open connections, short circuits, miswiring and sporadic errors
• Resistance measurement between 0.5 and 10MΩ adjustable as threshold values in the low voltage range (10V)
• measurement of diode direction and blocking voltage measurement of diode direction and blocking voltage measurement of diode direction and blocking voltage measurement of blocking voltage
• High-voltage test with volt-accurate test voltage up to 2100VDC/1200VAC
• Insulation resistance test up to 1GΩ
• Definable ramps and hold times, as well as fast DC test
• Port for connecting external insulation measuring devices
• Optional 4-wire measurement for the detection of resistances from 1mΩ
• Robust metal walker
• Built-in test button and indicators for ready, match and fail states
• Scanner head for detection of cables with open ends
• Port for connecting a foot switch (Model 714) and indicators to mount the device behind a panel
• PC software
• Factory Calibration Certificate (annual calibration recommended)
• European power supply
• USB interface cable
• 1 year warranty and software upgrade support (optional annually extendable)

Incl. 2 x CB29 PCB with 64 screw terminals each.

Note: The CB29 included in the scope of delivery can also be replaced by another board of the same value on request.

Optionally the device can be extended with:

• Up to 2560 measuring points by means of extension modules
• Üover 60 different interface boards [next]
• Additional Hardware Accessories [next]
• Additional software options [next]

Customized adapters, devices and software can be created on request. Talk to us!
