ALLNET replacement power supply/voltage converter 24V/1.25A IN: 9~36VDC -> OUT: 24VDC/DC... more

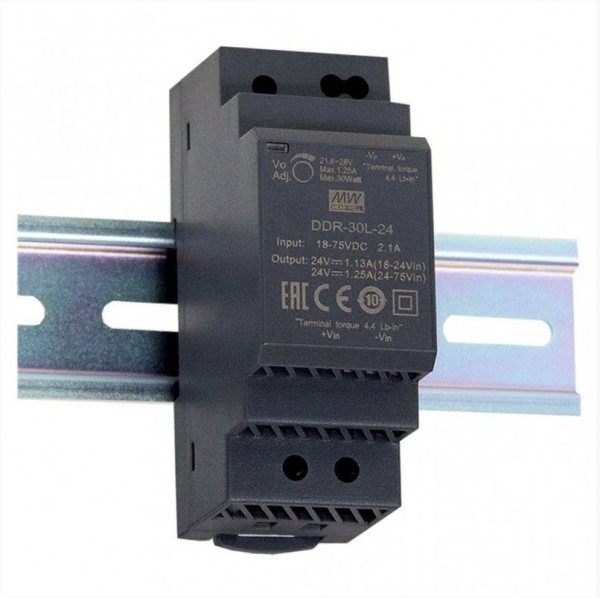

Product information "ALLNET replacement power supply/voltage converter 24V/1.25A IN: 9~36VDC -> OUT: 24VDC/DC converter Mean Well top-hat rail"

ALLNET replacement power supply/voltage converter 24V/1.25A IN: 9~36VDC -> OUT: 24VDC/DC converter Mean Well DIN rail

Highlights:

For DIN rail mounting
can be installed on DIN rail TS-35/7.5 or 15
Width only 35mm
Wide input voltage range 4:1
No minimum load required
regulated output voltage (±10%)
Cooling through free air convection
Input/output insulation 4000V
Protection: short circuit, overload, overvoltage, input polarity reversal, input under voltage protection

Technical data:

Property	Value
Input voltage	9 → 36V dc
Output voltage	24V dc
Output current	1.25A
Nominal power	30W
Number of outputs	1
Height	90mm
Width	35mm
Mounting type	DIN rail mounting
Series	DDR-30
Output voltage setting range	21.6 → 28V
Depth	54.5mm
Buzz and noise voltage	100mV ss
Temperature max	+85°C
Operating time	483.3kh
Load levelling	±0.5%
Temperature min.	-40°C
