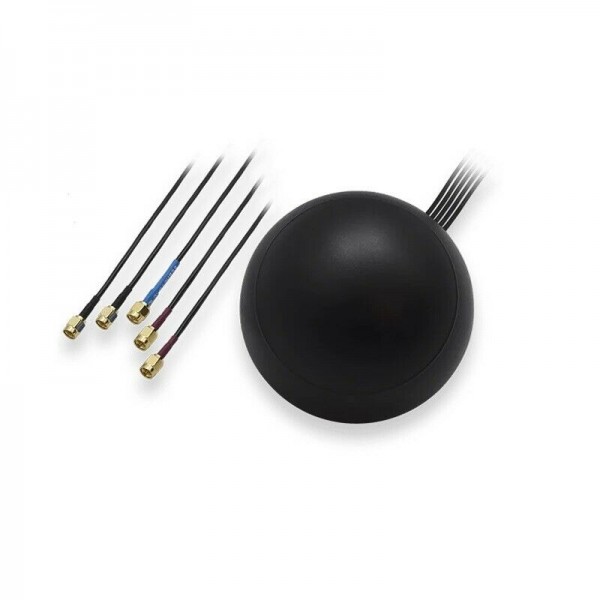

Teltonika · Zubehör · Antenne · COMBO QUAD Mobile/GNSS ROOF SMA Antenna
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 212068
- vendor: Teltonika
- mnufacturer no.: PR1KCL28
- weight: 0.55kg
- warranty: 24 months
- Do you have any questions concerning this product?
4 in 1 Antenna · Frequency Range: 698-960 / 1710-2690 MHz · Polarization Linear · Impedance 50 O · Gain 3 dBi · V.S.W.R <3.0 · Connector 2x SMA Male · LTE MIMO Antenna · Frequency Range: 698-960/1710-2690 MHz · Polarization Linear · Gain 3 dBi · Impedance: 50 O GNSS ANTENNA Frequency Range 1575.42 MHz Polarization RHCP Impedance 50 O LNA Gain 28±2 dB Supply Voltage 3-5 VDC Current Consumption < 15 mA V.S.W.R <2.0 Connector SMA Male Cable 1 x RG174, 3000 mm LTE MIMO ANTENNA Frequency range 698-960 / 1710-2690 MHz Polarization Linear Impedance 50 O Gain 3 dBi V.S.W.R: <3.0 Impedance: 50 O Connector SMA Male Cable 4 x RG174, 3000 mm MECHANICAL / ENVIRONMENTAL Radome material ABS Radome ingress protection rating IP67 Mounting method Screw Operating temperature -40 °C to +85 °C Operating relative humidity < 95 % RoHS compliant Weight 540 g
