ALLNET ALL5003EVAL / Development and Evaluation Kit incl. AL

Development consisting of:

ALL5003EVAL Evaluationboard

ALL5003CPU Board

• 1x WiFi antenna incl. pigtail
• 1x LAN cable RJ45
• 1x 5V Power supply
• 1x Seriel cable adapter 3-fold

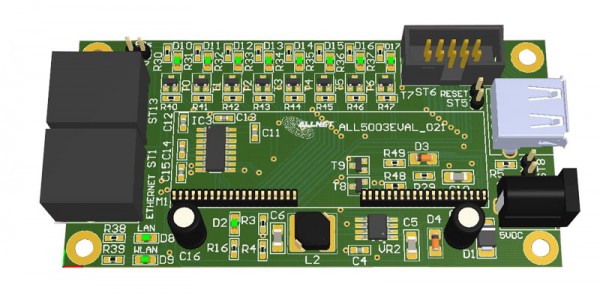

Technical Details ALL5003EVAL:

• Powered by 5V power supply
• Dimensions: 100 * 50 mm
• Console port RS232 to RJ45
• 1 USB-A-socket (Host)
• RJ45-socket for Ethernet
• 8 programmable LEDs
• 3.3V to supply its own projects
• 1x 10-pin box header for easy access to the I/O pins of the CPU board
• 8 LEDss are switched off by jumper
• Reset & Factory Default can be triggered via jumper
• 2 additional LEDs for LAN and WLAN Activity



Technical Details ALL5003CPU:

• CPU: Ralink RT5350, 360 MHz (MIPS)
• FLASH: 32 MB
• RAM: 32 MB
• 7x usable GPIO-Pins
• 1x USB-Host-Port
• 1x serial interface (Console)
• 1x LAN-connection 10/100 Mbit
• 1x U.FL socket

Dimension:

• Module-Size: 65 * 21 mm
• Mounting: any
• Pin connector pin spacing 1.27 mm single-breasted
• 2x 20 Pins
