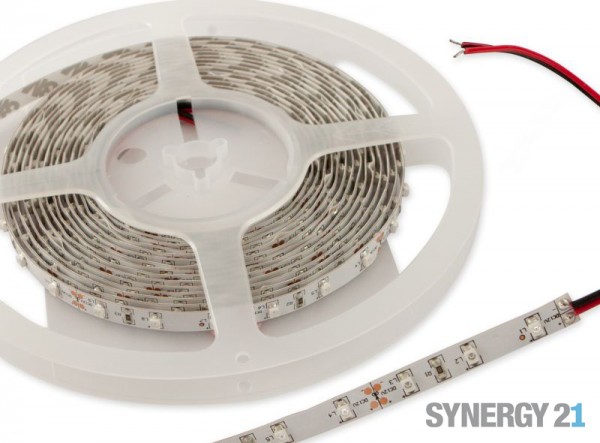

Synergy 21 LED Flex Strip 60 red DC12V 24W IP20
- stock: 0
- part no.: 103982
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00035
- EAN No.: 4038816103987
- weight: 0.09kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet ES EU RoHS und REACH ErklärungSynergy 21 LED Flex Strip red DC12V 24W IP20
Voltage: 12V, max.2A
Watt: 24W±10%
Light colour: red
Beam angle: 120°
Protection class: IP20
Number of LEDs: 300*3528SMD
Dimensions: 5000*8*3 mm
PCB colour: white, open cable end
Operating temperature: -25°C to +40°C
Weight: 0.090 kg
Coolable all 3 LEDs
Adhesive tape: yes 3M on the back
kWh/1000h: 24
Strip can be cut at the cut marks with sharp scissors
. !Attention! Strip must be checked for functionality beforehand.
Only split strip when no power is present.
Our 3M adhesive tape adheres well, but is still only to be regarded as an assembly aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips also need to be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed. No guarantee can be given for overheated LED strips
Produktmerkmale:
Abstrahlwinkel: | 120 |
Ampere: | 2 |
CC oder CV: | CV |
Dimmbar: | abhängig vom Netzteil |
LED Strip Klebeband: | ja |
LED Strip Breite: | 8 |
LED Strip Höhe: | 3 |
LED Strip Länge: | 5000 |
LED Strip kürzbar: | 50 |
Lichtfarbe: | rot |
Schutzklasse: | IP20 |
Volt: | 12 |
Watt: | 24 |
Energieeffizienz Klasse F | |
---|---|
kwh/1000h: | 24,00 |
Lumen: | 2025 |
Watt: | 24,0 |
Nennlebensdauer: | 35000 Std. |
Schaltzyklen: | 50000 |
Opt. Umgebungstemperatur: | 25 °C |
EEK Label | Download |
Herst.Art.Nr.: LPV-150-12
Ready to ship today,
Delivery time appr. 1-3 workdays
