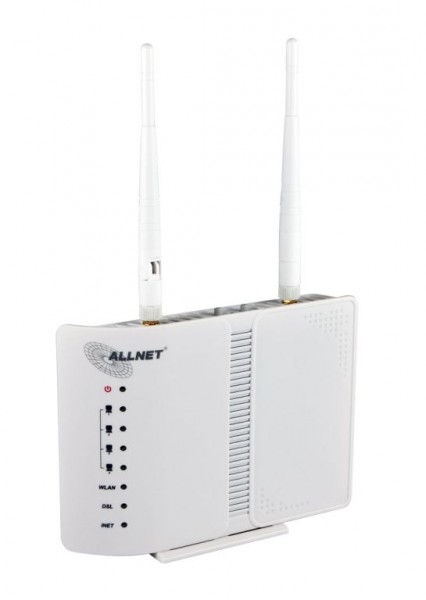

ALLNET ALL-WR02400N / WiFi Modem-Router f. ADSL2+ Annex B/J

Preview: ALLNET ALL-WR02400N / WiFi Modem-Router f. ADSL2+ Annex B/J

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

declaration of conformity

EU RoHS und REACH Erklärung

stock: 0
part no.: 115050
vendor: ALLNET
mnufacturer no.: ALL-WR02400N
EAN No.: 4038816115058
weight: 1kg
warranty: 24 months
Do you have any questions concerning this product?

Highlights: Ultra Fast Internet thanks to integrated ADSL2+ modem New: supports... more

Close menu

Product information "ALLNET ALL-WR02400N / WiFi Modem-Router f. ADSL2+ Annex B/J"

Highlights:

Ultra Fast Internet thanks to integrated ADSL2+ modem
New: supports Annex B & J (splitter-free Operations e.g. "Telekom Call & Surf IP"
Up to 24 Mbps Download rate for ultra-fast downloads, IP-TV, gaming, etc. (depending on provider)
Up to 3,5Mbps Upload (with Annex J enabled)
Latest wireless N technology for transfers of up to 300 Mbit/s
Powerful SPI firewall with DoS (Denial of Service) Protection, Built-in NAT, MAC and packet filter, DMZ and many more

With the ALL-WR02400N brings ALLNET the modem router on the market, which is suitable for ADSL2 + broadband connections. An external modem is not necessary.

By supporting ADSL2 + technology, the speed advantages of modern high-speed connections can be utilized perfectly and achieve download speeds of up to 24Mbit/s depending on the provider. In addition, the router also achieved thanks to the latest Wireless-N technology transfer rates up to 300 Mbps and is perfect for online gaming, IPTV, HD video and audio streaming and voice over IP compatible. The two antennas contained ensure a long-range transmission of the wireless signal. To ensure full functionality with maximum flexibility, the router still has four additional LAN ports.

In addition, the router has the latest WPA2 encryption technology, allowing secure data transmission within the network. Due to the integrated SPI firewall with DoS protection, Built-in NAT, MAC and packet filters, and DMZ maximum safety is achieved, which promises to provide additional safety especially for the discerning consumer.

The configuration of the ALL-WR02400N can quickly and easily perform the intuitive web interface and can therefore be administered across operating systems from any device. With a power consumption of only 5 watts, the router modem combination is perfect for continuous use. At the front of the unit LED for visual indication of the number of operating conditions are attached.

Technical details:

Item	Specification
ADSL Profile:	Full-Rate ANSI T1.413 issue 2 ITU G.992.1 (G.DMT) Annex B ITU G.992.2 (G.Lite) Annex B ITU G.992.3 (Annex J) ITU G.992.3 (G. dmt.bis) Annex B ITU G.992.4 (G.lite.bis) Annex B ITU G.992.5 (ADSL2+) Annex B ITU G.994.1 (G.hs) Compatible with most Major DSLAM Equipments
ATM and PPP Features:	RFC2684 Bridge and Routed LLC&VC RFC2364 PPP over ATM ALL5 RFC2516 PPP over Ethernet FRC2225/RFC1577 Classical IP over ATM RFC1483 Transparent Bridge RFC1483/2684 Bridged Ethernet ATM Formum UNI 3.1/4.0, ATM Adaption Layer Type 5-AAL5 VPI Range (0-255) and VCI Range (32-665535) UBR, CBR, VBR-rt, VBR-nrt F4/F5 OAM Loopback AIS and RDI OAM cells Support 16 PVCs
Network Protocol:	Static IP, Dynamic RIPv1, RIPv2 support MTU Adjustment Network Adress Translation (NAT) PVC Port Mapping (Ethernet Ports) Port Forwarding NAT Application Level Gateway for Applications DHCP Server/Relay/Client DNS Relay Agent DMZ support DDNS support SNMP v1, v2 Support UPnP (Universal Plug and Play TR69 CWMP PPP Auto Reconnect and configurierbare timeouts PPP Auto Reconnect on WAN Acess/PPP on Demand IGMP v1/v2 snooping IGMP Multicast Support ALG für SIP und H.323
WLAN Standards:	IEEE 802.11b/g IEEE 802.11n
Modulation:	OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and ROBO Modulation Scheme Wireless IEEE802.11n: BPSK, QPSK, QAM-16, QAM-64 IEEE802.11g: BPSK, QPSK, QAM-16, QAM-64 IEEE802.11b: CCK, QPSK, BPSK
Data rates:	IEEE 802.11b: 1, 2, 5.5 and 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: bis zu 300Mbps
Network Interface:	4x RJ45 10/100BaseT
WLAN Security:	64/128-Bit WEP WPA-PSK and TKIP/AES WPA2-PSK and TKIP/AES WPS via push Button Acess Control List Multi-SSID
Firewall:	Built-in NAT MAC Filtering & IP Filtering Parental Control Stateful Packet Inspection (SPI) Denial of Service Prevention (DoS) PAP/CHAP Authentication for PPP mode ALG (applicaction-level gateway) for NAT/PAT support
QoS:	Classification rules Priority Queuing 802.1p
Supported Operating Systems:	All network-capable operating systems (TCP/IP)
Configuration:	Web GUI Telnet or Command Line Interface via serial German Firmware Upgrade via FTP/HTTP Supports Remote Access Control Diagnostics Test
VPN Pass-Trough:	IPSEC/PPTP/L2TP Pass-trough
Power consumption:	5 Watt maximum
LED-Indicators:	1 x Power 4 x Ethernet 1 x Wireless on/off 1 x DSL (Sync) 1 x INET (Internet)
Controls on the device:	Dervice Button ON/OFF WLAN Button ON/OFF WPS Button
Housing:	Plastic housing
Dimension:	Height/Width/Depth: 95 x 110 x 27 mm Weight: 465 grams (only device)
Environment:	Temperature operating: 0 ~ 50 °C Humidity operating: 10% ~ 90% (non condensed) Temperature storage: -20 ~ 65 °C Humidity storage: 30% ~ 95% (non condensed)
Marks:	CE
Package content:	ALL-WR02400N Router incl. WLAN Antennas external Power Supply RJ11 -> RJ11 DSL Cable RJ45 -> RJ45 DSL Cable TAE-F -> RJ11 DSL Cable for Annex J (splitter-free operation) RJ45 Network Cable CD and manual

Related links to "ALLNET ALL-WR02400N / WiFi Modem-Router f. ADSL2+ Annex B/J"

Available downloads:

Downloads

DISCLAIMER_OF_WARRANTY
This Program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; version 2 of the License.
This Program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this Program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA.
The full text of the GNU General Public License version 2 is included with the software distribution in the file LICENSE.GPLv2

NO WARRANTY
BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Written Offer for Source Code
For binaries that you receive from ALLNET GmbH Computersysteme on physical media or within the download of the offered firmware that are licensed under any version of the GNU General Public License (GPL) or the GNU LGPL, you can receive a complete machine-readable copy of the source code by sending a written request to:
     ALLNET GmbH Computersysteme
     Maistrasse 2
     82110 Germering
Your request should include: (i) the name of the covered binary, (ii) the version number of the Allnet product containing the covered binary, (iii) your name, (iv) your company name (if applicable) and (v) your return mailing and email address (if available).
We may charge you a nominal fee to cover the cost of the media and distribution.
Your request must be sent within three (3) years of the date you received the GPL or LGPL covered code.
For your convenience, some or all of the source code may also be found at:
http://www.allnet.de/gpl.html

Dokumentation
	Dokumentation 24.11.2015	ALL-WR02400N Konfigurationshilfe für ADSL mit VLAN Tag Erforderlich für BNG-Anschluss der Telekom
	Dokumentation 26.05.2015	ALL-WR02400N Benutzerhandbuch (englisch)
	Dokumentation 26.05.2015	ALL-WR02400N Hilfestellung: RJ45-Port (LAN) als WAN-Port konfigurieren
	Dokumentation 26.05.2015	ALL-WR02400N WDS-Hilfestellung
	Dokumentation 26.05.2015	ALL-WR02400N Kurzanleitung (deutsch)
