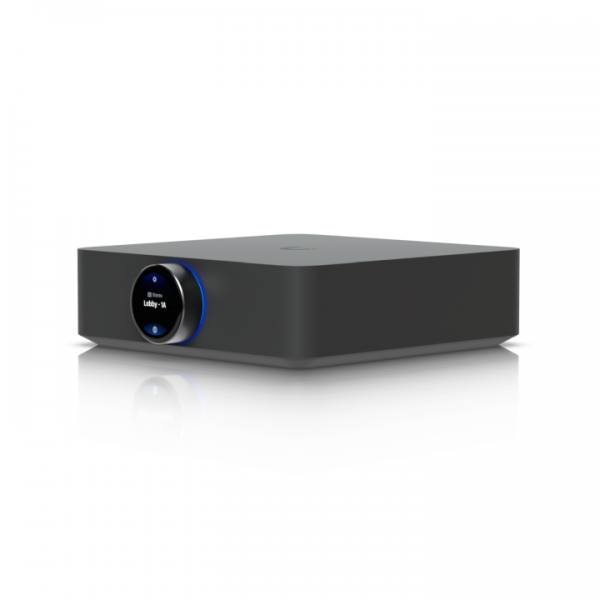

Ubiquiti UniFi PowerAmp Â• speaker amplifier Â• 1x RCA out Â• 2x RCA in Â• 1x HDMI Â• black Â• UPL-Amp-B

product pictures similar, may differ from the product description!

Expected to be available from 12 December 2024

High-quality speaker amplifier for Hi-Fi multi-zone audio streaming and impressive spatial sound... more

Product information "Ubiquiti UniFi PowerAmp Â• speaker amplifier Â• 1x RCA out Â• 2x RCA in Â• 1x HDMI Â• black Â• UPL-Amp-B"

High-quality speaker amplifier for Hi-Fi multi-zone audio streaming and impressive spatial sound experiences.

Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect

130 watts per channel into 8 ohms

(2) speaker connection outputs with (2) specially designed banana plugs included

(1) Analogue RCA subwoofer output

(2) RCA analogue inputs for left and right channel

(1) HDMI eARC input with impressive surround sound thanks to Dolby Atmos

1.43" rotary knob with touchscreen

Less setup, management and group control with the UniFi Play mobile app

Mechanical
Dimensions	With button: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5 inches) Without button: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5 inches)
Weight	2.4 kg
Handling material	Plastic
Mounting	Desktop
Colour	Black White
Hardware
Network interface	(2) GbE RJ45 ports
WLAN standards	802.11 a/b/g/n/ac
Connectivity	WLAN 2.4 G, bandwidth 20/40 MHz WLAN 5G, bandwidth 20/40/80 MHz
Power method	(1) Universal AC input, 100240 V AC, 2.5 A max., 50/60 Hz
Power consumption	17W
LEDs	LED ring
LCM display	1.43" rotary knob with touchscreen
Button	Factory reset
Operating ambient temperature	-5 to 40 °C (23 to 104 °F)
Humidity during operation	5 to 90 % non-condensing
Certifications	FCC, IC, CE
Audio
Power per channel (continuous power)	130 W, 8 O, 1 kHz, < 0.05 % THD+N, EIA (CEA-490-A) 260 W, 4 O, 1 kHz, < 0.09 % THD+N, EIA (CEA-490-A)
Amplifier class	Class D
Output	Stereo sound
Surround format	Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
Grouping	Up to 32 PowerAmps
Audio input	(1) HDMI eARC input (2) RCA analogue input L/R
Audio output	(1) Analogue RCA subwoofer output (2) Speaker connection outputs with (2) banana plugs
Streaming	AirPlay2, Spotify Connect, Soundtrack Your Brand* ^{*Available from 8 November.}
Application requirements
UniFi playback	UniFi Play iOS and Android: version 1.0.0 and higher
