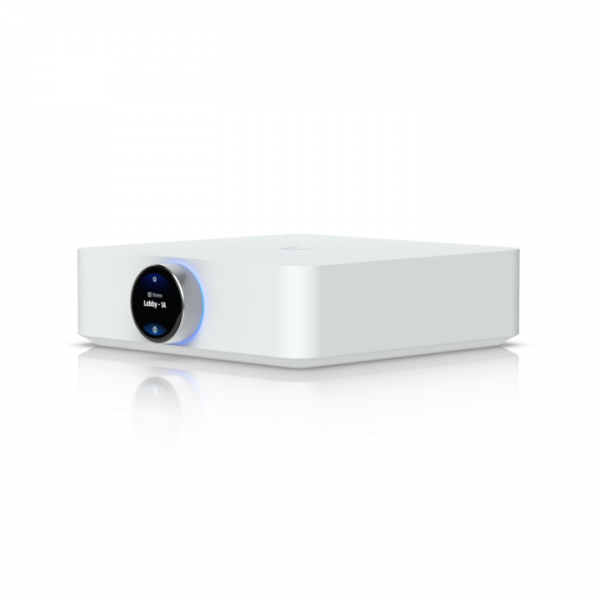

Ubiquiti UniFi PowerAmp • speaker amplifier • 1x RCA out • 2x RCA in • 1x HDMI • white • UPL-Amp-W
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 234947
- vendor: Ubiquiti
- mnufacturer no.: UPL-Amp-W
- weight: 2.4kg
- warranty: 12 months
- Do you have any questions concerning this product?
High-quality speaker amplifier for Hi-Fi multi-zone audio streaming and impressive spatial sound... more
Product information "Ubiquiti UniFi PowerAmp • speaker amplifier • 1x RCA out • 2x RCA in • 1x HDMI • white • UPL-Amp-W"
High-quality speaker amplifier for Hi-Fi multi-zone audio streaming and impressive spatial sound experiences.
Low latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
130 watts per channel into 8 ohms
(2) speaker connection outputs with (2) specially designed banana plugs included
(1) Analogue RCA subwoofer output
(2) RCA analogue inputs for left and right channel
(1) HDMI eARC input with impressive surround sound thanks to Dolby Atmos
1.43" rotary knob with touchscreen
Less setup, management and group control with the UniFi Play mobile app
Technical specification
Mechanical | |
---|---|
Dimensions | With button: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5 inches) Without button: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5 inches) |
Weight | 2.4 kg |
Handling material | Plastic |
Mounting | Desktop |
Colour | Black White |
Hardware | |
Network interface | (2) GbE RJ45 ports |
WLAN standards | 802.11 a/b/g/n/ac |
Connectivity | WLAN 2.4 G, bandwidth 20/40 MHz WLAN 5G, bandwidth 20/40/80 MHz |
Power method | (1) Universal AC input, 100–240 V AC, 2.5 A max., 50/60 Hz |
Power consumption | 17W |
LEDs | LED ring |
LCM display | 1.43" rotary knob with touchscreen |
Button | Factory reset |
Operating ambient temperature | -5 to 40 °C (23 to 104 °F) |
Humidity during operation | 5 to 90 % non-condensing |
Certifications | FCC, IC, CE |
Audio | |
Power per channel (continuous power) | 130 W, 8 O, 1 kHz, < 0.05 % THD+N, EIA (CEA-490-A) 260 W, 4 O, 1 kHz, < 0.09 % THD+N, EIA (CEA-490-A) |
Amplifier class | Class D |
Output | Stereo sound |
Surround format | Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM |
Grouping | Up to 32 PowerAmps |
Audio input | (1) HDMI eARC input (2) RCA analogue input L/R |
Audio output | (1) Analogue RCA subwoofer output (2) Speaker connection outputs with (2) banana plugs |
Streaming | AirPlay2, Spotify Connect, Soundtrack Your Brand* *Available from 8 November. |
Application requirements | |
UniFi playback | UniFi Play iOS™ and Android™: version 1.0.0 and higher |
