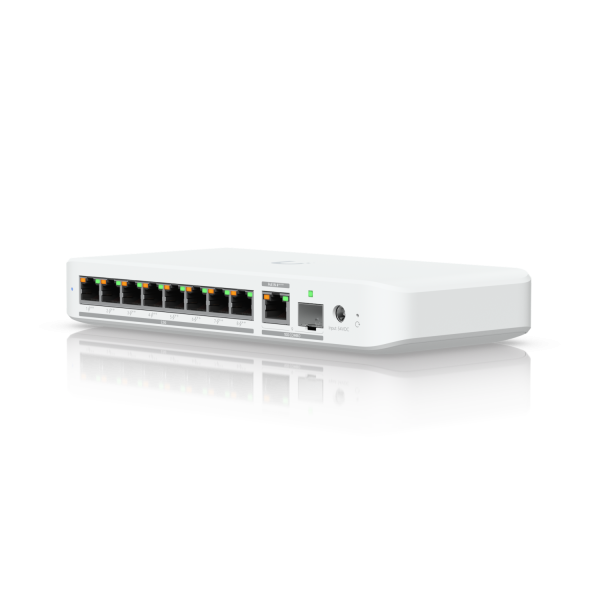

Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE

Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE
Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE
Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE
Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE
Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Flexible 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be... more
Product information "Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE"
Flexible 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered by PoE+++ or an AC power supply*.

Highlights:

  • (8) 2.5 GbE PoE++ output ports
  • (1) 10 GbE PoE+++ input port for power/SFP+ port combination
    • — 57 W PoE availability with PoE+++ input
    • — 37 W PoE availability with PoE++ input
    • — 12 W PoE availability with PoE+ input
  • 196 W PoE capability with optional AC power supply*

*Power supply available separately

Technical data:

Mechanical
Dimensions 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3 inches)
Weight 567 g (20 oz)
Favourite material Polycarbonate
Mounting Wall mounting possible (kit included in scope of delivery)
DIN rail mounting possible (available separately)
Hardware
Management interface Ethernet in-band
Network interface (8) 2.5/1 GbE RJ45 ports
(1) 10G SFP+ or 10/5/2.5/1 GbE combo port*
If only one is active, GbE can be supplied with power and SFP+ can be used for data
PoE interface (8) 60 W PoE++ (pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 8-)
Total non-blocking throughput 30 Gbit/s
Switching performance 60 Gbit/s
Forwarding tariff 44.64 Mpps
Performance method (1) Power supply unit, 54 V DC, 3.9 A (not included in the scope of delivery)
(1) PoE+++ (pairA 1, 2+; 3, 6-)(pairB 4, 5+; 7, 8-)
Power supply External AC/DC adapter
UniFi PoE switch
Supported voltage range AC/DC input: 54 V DC (DC socket)
PoE input: 50–57 V DC
Max. Power consumption PoE input: 14 W (without PoE output)
AC input: 17 W (without PoE output)
Total available PoE PoE+++ input: 57 W
PoE++ input: 37 W
PoE+ input: 12 W
210 W AC adapter input: 196 W
Max. PoE power per port through PSE PoE: 15.4 W
PoE+: 30 W
PoE++: 60 W
PoE mode voltage range PoE: 44–57 V
PoE+/PoE++: 50–57 V
Button Factory reset
Operating ambient temperature -20 to 45 °C (-4 to 113 °F)
Humidity during operation 10 to 90 % non-condensing
Certifications CE, FCC, IC
Switching functions
Layer 2 functions STP / RSTP with prioritisation and deactivation at port level
Storm control
Multicast/broadcast rate limiting flow control
Jumbo
-frames
Egress rate limiting
Proprietary loop protection
Port isolation
Port mirroring
LEDs
System Blue/white;: Power supply.
Flashing white: Boot up is running.
Flashing blue: Firmware update.
Solid white: Factory settings; device is waiting for acceptance.
Solid blue: Device has been accepted.
Ethernet Link/Activity
PoE input/output
SFP+ Link/Activity
Application requirements
UniFi network Version 9.0.108 and higher
