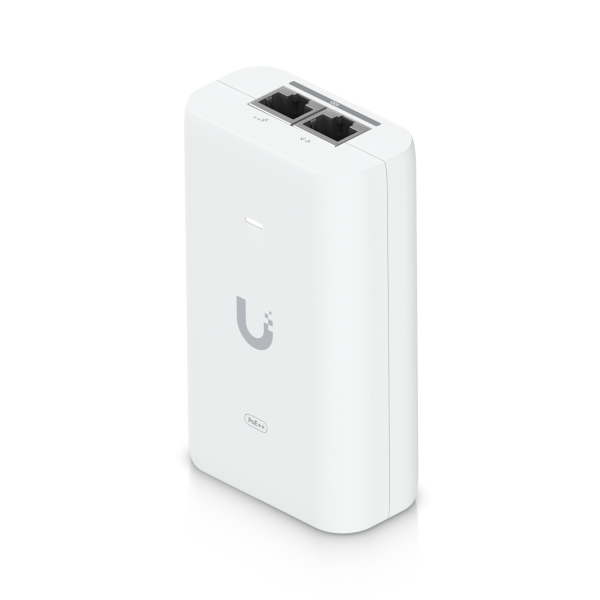

Ubiquiti PoE Injector • PoE++ • 60W • 10 GbE • UACC-PoE++-10G

product pictures similar, may differ from the product description!

Arriving soon. Delivery Date unknown

An adapter that can power UniFi PoE++ devices, reduce dependency on the PoE switch power supply,... more

Product information "Ubiquiti PoE Injector • PoE++ • 60W • 10 GbE • UACC-PoE++-10G"

An adapter that can power UniFi PoE++ devices, reduce dependency on the PoE switch power supply, and provide a multi-gigabit LAN connection.

Highlights:

Dimensions	106 x 63 x 34 mm (4.2 x 2.5 x 1.3 inches)
Weight	210 g
Output voltage	54 V DC at 1.12 A
LAN activity indicator	NO
Gigabit LAN connection	Yes, up to 10 GbE
Remote reset function	No
Reset button	NO
Nominal voltage	100–240 V alternating current at 50/60 Hz
Input current	1.5 A max
Inrush current	<150 A peak at 230 V alternating current
Efficiency	>88 %
Output ripple	1% max
Switching frequency	65 kHz
Line control	= 2 %
Load control	= 5 %
2-pair power supply	NO
4-pair power supply	Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data input/PoE	RJ45 shielded socket
&overvoltage protection	Difference and common mode
Clamp protection	11 V data, 60 V current
Max. Surge discharge	1500A (8/20 µs) power
Peak pulse current	36A (10/1000 µs) data
Shunt capacitance	<5 pF data
Response time	<1 ns
Max. PoE+ power per port through PSE	60 W
Operating ambient temperature	0 to 40 °C (32 to 104 °F)
Storage temperature	-30 to 70 °C (-22 to 158 °F)
Humidity during operation	10 to 95 % non-condensing
Certifications	CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
