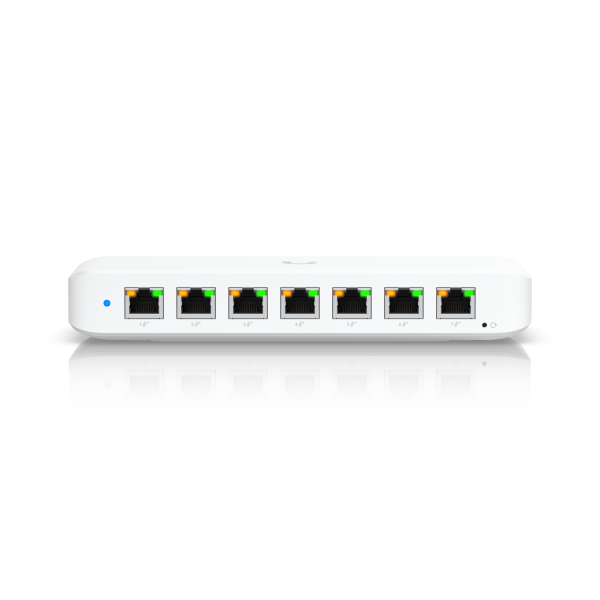

Ubiquiti UniFi Switch Ultra / 8 Port / Layer 2 / PoE++ input / PoE+ output / USW-Ultra
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 222799
- vendor: Ubiquiti
- mnufacturer no.: USW-Ultra
- EAN No.: 8100846936982
- weight: 0.4kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options.
(7) GbE PoE+... more
Product information "Ubiquiti UniFi Switch Ultra / 8 Port / Layer 2 / PoE++ input / PoE+ output / USW-Ultra"
A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options.
(7) GbE PoE+ output ports
(1) GbE PoE++ input port
— 42W PoE availability with PoE++ input
— 17W PoE availability with PoE+ input
— 8W PoE availability with PoE input
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 202.9 x 76 x 33 mm (8 x 3 x 1.3") |
| Weight | Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Power method | 54V, 3.9A power adapter (Not included) PoE++ (Pins 4, 5+; 7, 8-) |
| Power supply | 54V, external, 1.1A/60W |
| Supported voltage range | 44—57V DC |
| Total available PoE | 60W PoE++ input: 45W DC adapter input: 52W Passive PoE adapter input: 45W |
| Max. PoE+ wattage per port by PSE | 30W |
| Button | Factory reset |
| Operating temperature | -15 to 45° C (5 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Link/activity |
