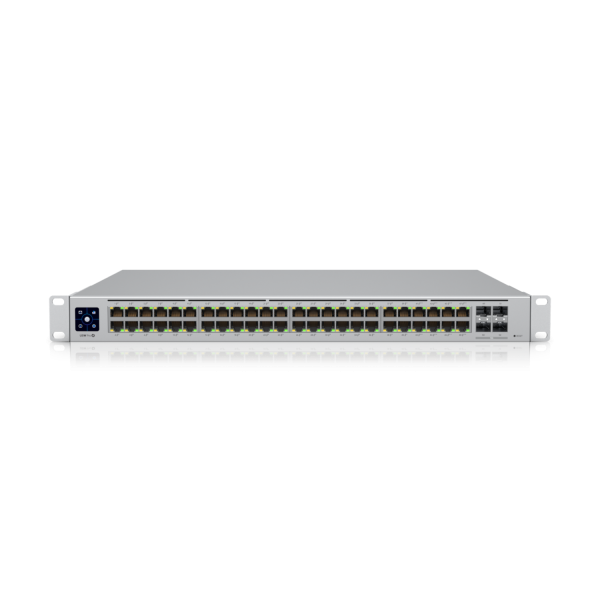

Ubiquiti UniFi Switch Gen2 / 48 Port / 600W / PoE++ / 4 SFP+ / USW-Pro-48-POE
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 180735
- vendor: Ubiquiti
- mnufacturer no.: USW-Pro-48-POE
- EAN No.: 8178820276560
- weight: 7.6kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
A 48-port, Layer 3 switch capable of high-power PoE++ output.
(40) GbE PoE+, (8) GbE PoE++... more
Product information "Ubiquiti UniFi Switch Gen2 / 48 Port / 600W / PoE++ / 4 SFP+ / USW-Pro-48-POE"
A 48-port, Layer 3 switch capable of high-power PoE++ output.
(40) GbE PoE+, (8) GbE PoE++ ports
(4) 10G SFP+ ports
600W total PoE availability
DC Power backup ready
Layer 3 switching
Near-silent cooling
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7") |
| Weight | Without mounting brackets: 6.2 kg (13.8 lb) With mounting brackets: 6.3 kg (14 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (48) GbE RJ45 ports (4) 1/10G SFP+ ports |
| PoE interface | (40) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 88 Gbps |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.944 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input, 52V DC, 11.54A / 11.5V DC, 5.22A |
| Power supply | AC/DC, internal, 660W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 60W (Excluding PoE output) |
| Total available PoE | 600W |
| Max. PoE wattage per port by PSE | PoE+: 32W PoE++: 64W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.10.5 and later |
