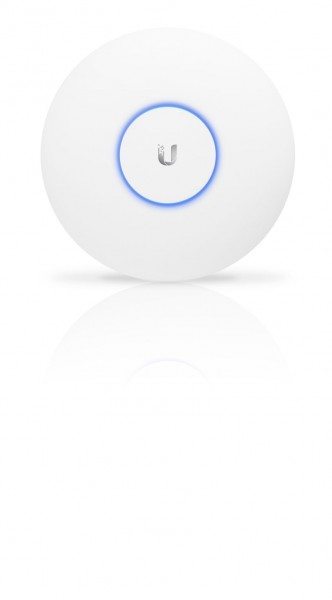

Ubiquiti Unifi Access Point HD / Indoor & Outdoor / 2,4 & 5 GHz / AC Wave 2 / 4x4 MU-MIMO / UAP-AC-HD
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 137739
- vendor: Ubiquiti
- mnufacturer no.: UAP-AC-HD
- EAN No.: 810354026126
- weight: 1.75kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet FR
EU RoHS und REACH Erklärung
Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support high-density networks and... more
Product information "Ubiquiti Unifi Access Point HD / Indoor & Outdoor / 2,4 & 5 GHz / AC Wave 2 / 4x4 MU-MIMO / UAP-AC-HD"
Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support high-density networks and critical system applications.
WiFi 5 dual-radio
8 spatial streams
140 m² (1,500 ft²) coverage
500+ connected devices
Powered using PoE+*
(2) GbE uplinks
*PoE power adapter included with single unit purchases.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 700 g (1.5 lb oz) With mount: 830 g (1.8 lb) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE+ |
| Power supply | Gigabit PoE adapter 48V DC, 0.5A* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57 VDC |
| Max. power consumption | 17W |
| Max. TX power 2.4 GHz 5 GHz |
25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz |
800 Mbps 1733 Mbps |
| Antenna gain 2.4 GHz 5 GHz |
3 dBi 4 dBi |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -10 to 70° C (14 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Guest traffic isolation | Supported |
| WMM | Supported |
| Concurrent clients | 500+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
