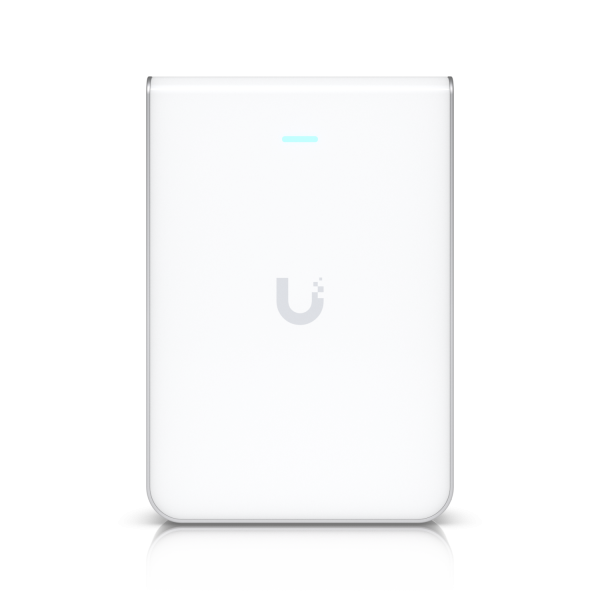

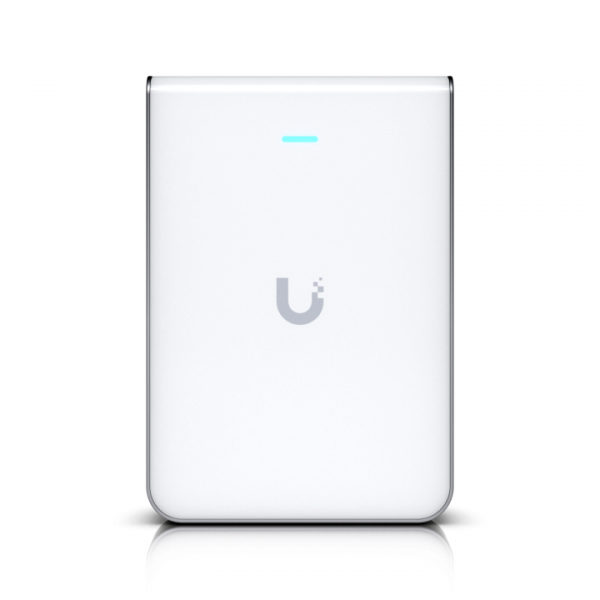

Ubiquiti Wireless AP WIFI7 • BE10700 • 2x2 • Indoor • 2,5 GbE • In-Wall • UniFi • U7-Pro-Wall
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 231340
- vendor: Ubiquiti
- mnufacturer no.: U7-Pro-Wall
- weight: 0.6kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Wall-mounted WiFi 6 access point with integrated PoE switch.
115 m² (1,250 ft²)... more
Product information "Ubiquiti Wireless AP WIFI7 • BE10700 • 2x2 • Indoor • 2,5 GbE • In-Wall • UniFi • U7-Pro-Wall"
Wall-mounted WiFi 6 access point with integrated PoE switch.
115 m² (1,250 ft²) coverage
¨über 300 angeschlossener Geräte
WiFi6 (4x4 MIMO)
Power supply via PoE*
*PoE+ input required for single-port PoE output.
Technical specifications
| Mechanical | |
|---|---|
| Maße | 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28") |
| Weight | 460 g (1.01 pounds) |
| Waste materials | Plastic, aluminium |
| Mounting material | Aluminium |
| Hardware | |
| Network interface | (1) Data input: 1GbE RJ45 port (4) Data output: 1GbE RJ45 ports |
| Management interface | Ethernet -Bluetooth |
| PoE interface | (1) PoE input (PoE output not used) (1) PoE output (PoE+ switch required) |
| Power Method | PoE |
| Power supply | UniFi PoE switch 48 V, 0.5 A PoE adapter (optional) |
| Max. Energy consumption | Without PoE output: 13.5 W |
| Maximum PoE wattage per port according to PSE | 15.4 W* *Requires a PoE+ switch |
| PoE mode voltage range | 44–57 V DC |
| Max. Transmission power 2.4 GHz 5 GHz |
22 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbit/s 4.8 Gbit/s |
| Antenna gain 2.4 GHz 5 GHz |
5 dBi 5.9 dBi |
| LED | White" Blue |
| key | Factory settings reset |
| Operating temperature | -30 to 60 °C (-22 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| Software | |
| WLAN standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Security for wireless connections | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Rate limit per user |
| Isolation of guest traffic | Supports |
| Concurrent clients | 300+ |
| DFS without waiting time | Yes* *Will be supported with upcoming firmware versions |
| Supported data rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s |
| 802.11b | 1, 2, 5.5, 11 Mbit/s |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s |
| 802.11n (WiFi 4) | 6.5 Mbit/s to 600 Mbit/s (MCS0 – MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbit/s to 3.4 Gbit/s (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbit/s to 4.8 Gbit/s (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application requirements | |
| UniFi network | Version 6.4.52 and later |
