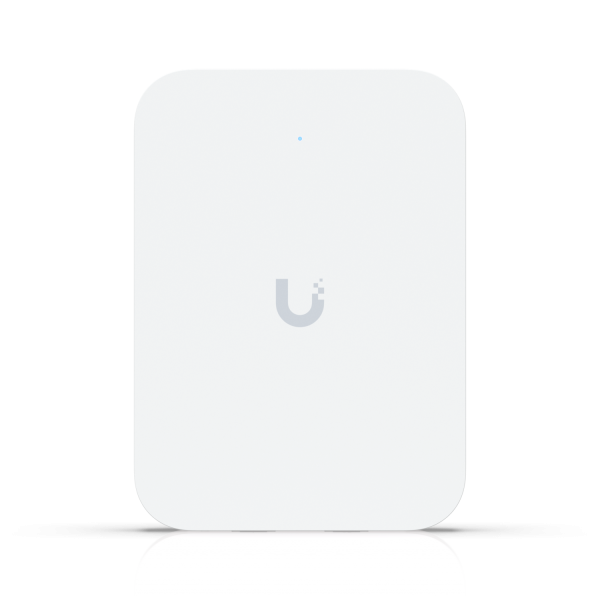

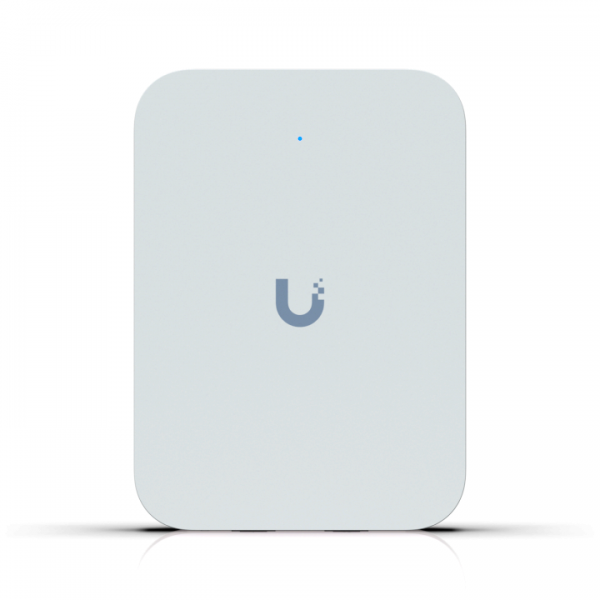

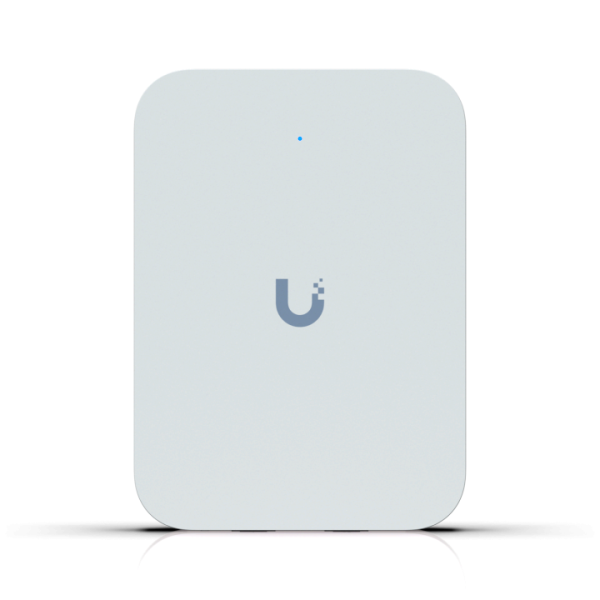

Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Indoor • 3x 2,5 GbE • In-Wall • UniFi • U7-IW

Preview: Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Indoor • 3x 2,5 GbE • In-Wall • UniFi • U7-IW

product pictures similar, may differ from the product description!

net price plus shipping costs

Expected to be available from 26 March 2025

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 242089
vendor: Ubiquiti
mnufacturer no.: U7-IW
weight: 0.4kg
warranty: 12 months
Do you have any questions concerning this product?

Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch, designed for... more

Close menu

Product information "Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Indoor • 3x 2,5 GbE • In-Wall • UniFi • U7-IW"

Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch, designed for use in the hospitality industry.

Highlights:

WLAN 7
4 spacious beaches
115 m² (1,250 ft²) coverage
Over 200 connected devices
Power supply via PoE/PoE+*
2.5 GbE uplink

_{*PoE+ required for single-port PoE output}

Technical data:

Mechanical
Dimensions	137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2 inches)
Weight	400 g
Favourite material	Polycarbonate, aluminium
Mounting material	Aluminium
Hardware
Network interface	(3) 1/2.5 GbE RJ45 ports
Management interface	Ethernet
PoE interface	(1) PoE+ input (1) PoE output
Power method	PoE PoE+ (required for PoE output)
Power supply	UniFi PoE switch
Supported voltage range	42.5–57 V direct current
Max. Power consumption	13 W (without PoE output)
Max. PoE power per port through PSE	12W
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	23 dBm 24 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) –
Max. Data rate 2.4 GHz 5 GHz 6 GHz	688 Mbit/s (BW40) 4.3 Gbit/s (BW240) – _{Depending on the regulatory region.}
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 8 dBi –
LEDs	White/blue
Button	Factory reset
Mounting	Wall (included)
Operating ambient temperature	-30 to 40 °C (-22 to 104 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Software
WLAN standards	802.11a/b/g/n/ac/ax/be (WLAN 6, WLAN 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Rate limit per user
Isolation of guest traffic	Supported
Concurrent clients	200+
Supported data rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11b	1, 2, 5.5, 11 Mbit/s
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11n	6.5 Mbit/s to 300 Mbit/s (MCS0 – MCS15, HT 20/40)
802.11ac	6.5 Mbit/s to 1.7 Gbit/s (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WLAN 6)	7.3 Mbit/s to 2.4 Gbit/s (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WLAN 7)	7.3 Mbit/s to 4.3 Gbit/s (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) _{Depending on the regulatory region.}
Application requirements
UniFi network	Version x and higher
UniFi OS	iOS™ version 10.20.0 and higher Android™ version 10.21.3 and higher
