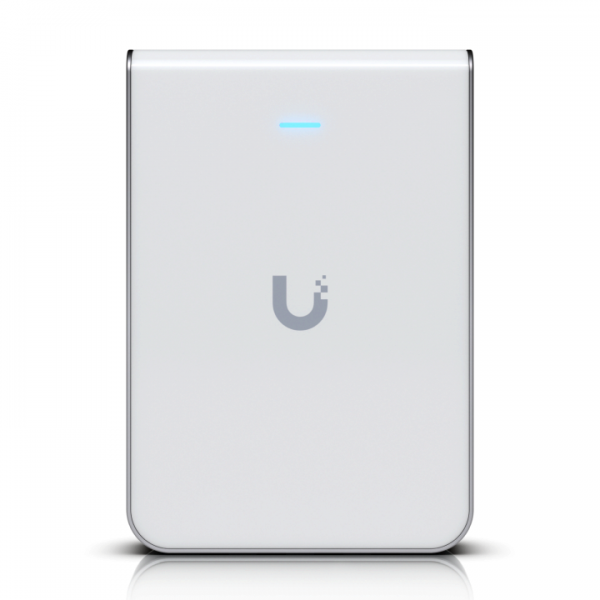

Ubiquiti Unifi Access Point In-Wall/ WIFI 6 / Indoor / 4x4 MU-MIMO / U6-IW
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 213045
- vendor: Ubiquiti
- mnufacturer no.: U6-IW
- EAN No.: 8100100733654
- weight: 0.46kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Wall-mounted WiFi 6 access point with a built-in PoE switch.
115 m² (1,250 ft²) coverage... more
Product information "Ubiquiti Unifi Access Point In-Wall/ WIFI 6 / Indoor / 4x4 MU-MIMO / U6-IW"
Wall-mounted WiFi 6 access point with a built-in PoE switch.
115 m² (1,250 ft²) coverage
300+ connected devices
WiFi6 (4x4 MIMO)
Powered using PoE*
*PoE+ input required for single port PoE output.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28") |
| Weight | 460 g (1.01 lb) |
| Enclosure materials | Plastic, aluminum |
| Mount material | Aluminum |
| Hardware | |
| Networking interface | (1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports |
| Management interface | Ethernet Bluetooth |
| PoE interface | (1) PoE in (PoE output not used) (1) PoE out (Requires a PoE+ switch) |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Optional) |
| Max. power consumption | Excluding PoE output: 13.5W |
| Max PoE wattage per port by PSE | 15.4W* *Requires a PoE+ switch |
| Voltage range PoE mode | 44—57V DC |
| Max. TX power 2.4 GHz 5 GHz |
22 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 4.8 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
5 dBi 5.9 dBi |
| LED | White/blue |
| Button | Factory reset |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.4.52 and later |
