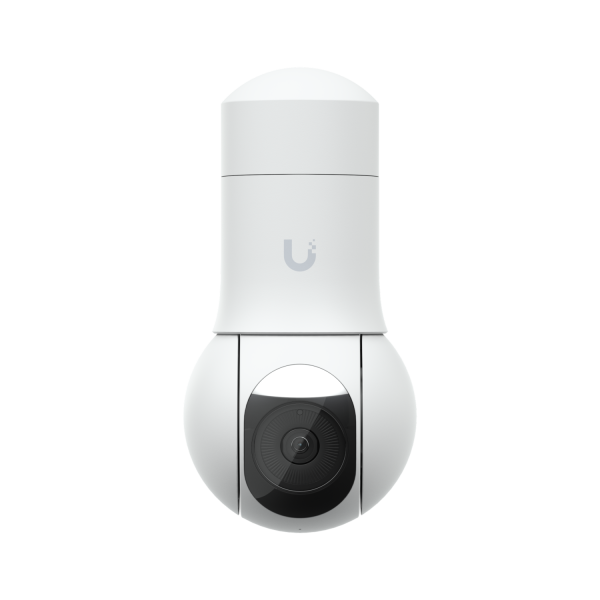

Ubiquiti UniFi Video Camera G5 PTZ • Outdoor • 2K • InfraRot • IP66 • POE+ • UVC-G5-PTZ
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 232067
- vendor: Ubiquiti
- mnufacturer no.: UVC-G5-PTZ
- weight: 0.98kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact all-weather camera with ultra-low latency pan-tilt-zoom control and versatile... more
Product information "Ubiquiti UniFi Video Camera G5 PTZ • Outdoor • 2K • InfraRot • IP66 • POE+ • UVC-G5-PTZ"
Compact all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
2K (4MP) video resolution
2x optical zoom
20 m (65 ft&sl;) IR night vision
AI event detection and automatic person tracking
Record audio with an integrated microphone
Integrated LED headlights for coloured night vision
Connection and power supply via PoE+
Weatherproof (can be used outdoors)
Technical specifications
| Mechanical | |
|---|---|
| Maße | Without holder: Ø90 x 152.5 mm (Ø3.5 x 6") With holder: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") |
| Weight | Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
| Features | Aluminium alloy, polycarbonate |
| Mounting material | Wall bracket: polycarbonate Pole mount: aluminium alloy |
| Diameter of the mast bracket | 38–50 mm (1.5–2") at the tube diameter |
| Weatherproof | IP66 |
| Resistance | IK04 |
| Optics | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| Viewpoint | 16:9 wide angle: H: 99.7°, V: 51.9°, T: 121° 16:9 telephoto: H: 45.5°, V: 25.4°, D: 52.4° |
| Night mode | Integrated IR and white LED illumination with IR cut filter |
| IR removal | 20 m (65 ft") |
| IR-limitation | Keep a distance from the top/side of ≥60 cm (2 ftß). |
| Video | |
| Resolution | 4 megapixel, 2688 x 1512 (16:9) |
| Maximum frame rate | 30 FPS |
| system | |
| Network interface | 10/100 MbE RJ45 port |
| Max. Power consumption | 14W |
| Performance method | PoE+ |
| Supported voltage range | 37–57 V DC |
| LEDs | R/G/B/W: Link, Aktivität Floodlight: 400 lm |
| key | Factory settings reset |
| Montage | Wall and pole mounting (included), Cable duct adapter, surface mounting, ceiling mounting, pendant mounting, corner mounting (optional, available separately) |
| Operating ambient temperature | -30 to 45º C (-22 to 113º F) |
| Humidity during operation | 0 to 90 % non-condensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (can be disabled) |
| Software | |
| Internet application | UniFi Protect |
| App | UniFi Protect iOS™ and Android™ |
