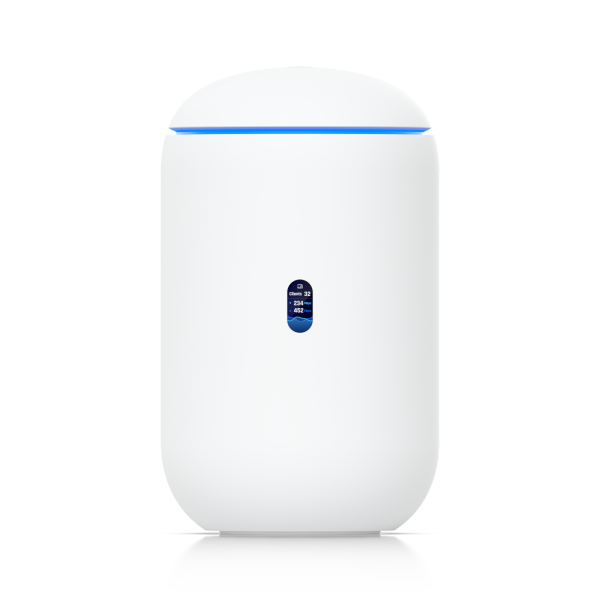

Product information "Ubiquiti UniFi Dream Router 7 • UniFi OS Console • 4x 2,5 GbE • 1x SFP+ • WiFi 7 • UDR7"
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD memory and full UniFi application support.

Highlights:

  • Integrated 6-stream WiFi 7 AP with 6 GHz support
  • Includes the full UniFi application suite for device management
  • Manages over 30 UniFi devices and over 300 clients
  • Integrated 4-port switch with (1) PoE port
  • (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port
  • 64 GB microSD memory pre-installed (expandable)

Technical data:

Mechanical
Maße Ø110 x 184.1 mm (Ø4.3 x 7.3")
Weight 1.1 kg
Housing material Polycarbonate
Hardware
Processor Quad-core Arm® Cortex® A53 at 1.5 GHz
System memory 3 GB DDR4
Expansion slot MicroSD memory card*
64 GB pre-installed microSD
Management interface Ethernet
Bluetooth
Network interface LAN:
(3) 2.5 GbE RJ45 ports

WAN:
(1) 10G SFP+ port
(1) 2.5 GbE RJ45 port
PoE interface (1) PoE (pair A 1, 2+; 3, 6-)
IDS/IPS throughput 2.3 Gbit/s
Power method Universal AC input, 100–240 V AC, 1.5 A max., 50/60 Hz
Power supply AC/DC, internal, 50 W
Supported voltage range 100–240 V alternating current
Max. Power consumption 26 W (without PoE output)
PoE budget 15.4 W
Max. PoE power per port through PSE 15.4 W
Power range PoE mode 44–57 V direct current
Max. Transmission power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz
688 Mbit/s (BW40)
4.3 Gbit/s (BW240)
5.7 Gbit/s (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz
5 dBi
7 dBi
6 dBi
LCM display (1) 0.96" screen
Button Factory reset
LEDs White/blue
Operating ambient temperature -10 to 40 °C (14 to 104 °F)
Humidity during operation 5 to 95 % non-condensing
Certifications CE, FCC, IC
Gateway functions
Performance WiFi QoS with UniFi APs
Application-, domain- and country-based QoS
Application and device type identification
Additional internet failover with LTE backup
Reporting on internet quality and performance
Next generation security Application-based firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain and advert filtering
VLAN/subnet-based traffic segmentation
Complete stateful firewall
Advanced networking features Licence-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
Teleport and Identity VPN with one click
Policy-based WAN and VPN routing
DHCP relay
Customisable DHCP server
IGMP proxy
IPv6 ISP support
Software
WLAN standards 802.11a/b/g/n/ac/ax/be (WLAN 6/6E, WLAN 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 4 per radio
VLAN 802.1Q
Advanced QoS Rate limitation per user
Isolation of guest traffic Supported
Concurrent clients 300+
Supported data rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11b 1, 2, 5.5, 11 Mbit/s
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11n 6.5 Mbit/s to 300 Mbit/s (MCS0 – MCS15, HT 20/40)
802.11ac 6.5 Mbit/s to 1.7 Gbit/s (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WLAN 6) 7.3 Mbit/s to 2.4 Gbit/s (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WLAN 7) 7.3 Mbit/s to 5.7 Gbit/s (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application requirements
UniFi network Version 9.0.108 and higher
