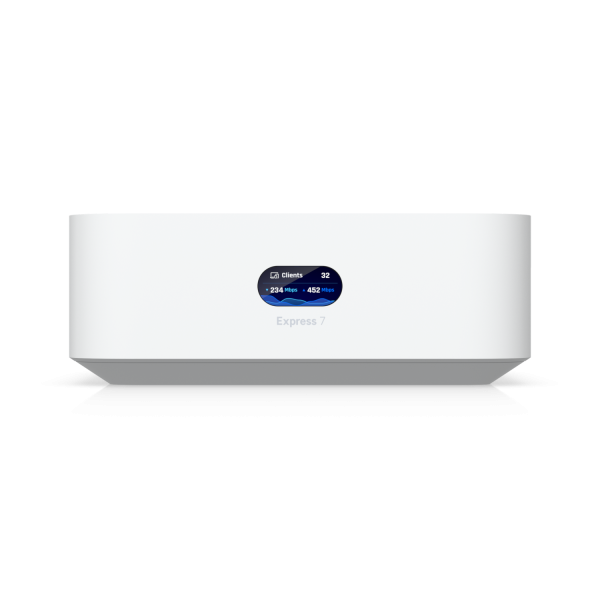

Ubiquiti UniFi Cloud Gateway Express 7 • 1x 10 GbE • 1 x 2,5 GbE • WiFi 7 • UX7

Preview: Ubiquiti UniFi Cloud Gateway Express 7 • 1x 10 GbE • 1 x 2,5 GbE • WiFi 7 • UX7

product pictures similar, may differ from the product description!

net price plus shipping costs

Arriving soon. Delivery Date unknown

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 241799
vendor: Ubiquiti
mnufacturer no.: UX7
weight: 0.422kg
warranty: 12 months
Do you have any questions concerning this product?

Mesh-scalable, super-compact 10G cloud gateway with integrated WiFi 7. Highlights:... more

Close menu

Product information "Ubiquiti UniFi Cloud Gateway Express 7 • 1x 10 GbE • 1 x 2,5 GbE • WiFi 7 • UX7"

Mesh-scalable, super-compact 10G cloud gateway with integrated WiFi 7.

Highlights:

Integrated 6-stream WiFi 7 with 6 GHz support
Optional use as a wired or mesh Layer 2 UniFi AP to extend coverage
140 m² (1,500 ft²) coverage
Manages over 30 UniFi devices and over 300 clients
(1) 10 GbE RJ45 WAN port
(1) 2.5 GbE RJ45 LAN port to expand the network

Technical data:

Mechanical
Dimensions	117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7 inches)
Weight	422 g (14.9 oz)
Favourite material	Polycarbonate
Hardware
Management interface	Ethernet Bluetooth
Network interface	LAN: (1) 2.5 GbE RJ45 port WAN: (1) 10 GbE RJ45 port
IDS/IPS throughput	2.3 Gbit/s
Power method	USB type C (5 V DC/5 A)
Max. Power consumption	22W
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	23 dBm 26 dBm 23 dBm
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO)
Throughput rate 2.4 GHz 5 GHz 6 GHz	688 Mbit/s (BW40) 4.3 Gbit/s (BW240) 5.7 Gbit/s (BW320)
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 7 dBi 6 dBi
LCM display	0.96" status display
LEDs	RJ45 green: Connection/activity
Button	Factory reset
Operating ambient temperature	-10 to 40 °C (14 to 104 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Gateway functions
Performance	Internet quality and error messages
Next generation security	Application-oriented firewall rules Content, country, domain and advert filtering VLAN/subnet-based traffic segmentation Complete stateful firewall
Advanced networking features	Licence-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN Teleport VPN with one click Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support
Software
WLAN standards	802.11a/b/g/n/ac/ax/be (WLAN 6/6E, WLAN 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	Gateway mode: 4 per radio Standard AP: 4 per radio
VLAN	802.1Q
Advanced QoS	Rate limitation per user
Isolation of guest traffic	Supported
Concurrent clients	300+
Supported data rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11b	1, 2, 5.5, 11 Mbit/s
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11n	6.5 Mbit/s to 300 Mbit/s (MCS0 – MCS15, HT 20/40)
802.11ac (WLAN 5)	6.5 Mbit/s to 1.7 Gbit/s (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WLAN 6)	7.3 Mbit/s to 2.4 Gbit/s (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WLAN 7)	7.3 Mbit/s to 5.7 Gbit/s (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application requirements
UniFi network	Version 9.0.108 and higher
