Ubiquiti UniFi Cloud Gateway Fiber • UniFi OS Console • 1x 10 GbE • 4x 2,5 GbE • 2x SFP+ • UCG-Fiber

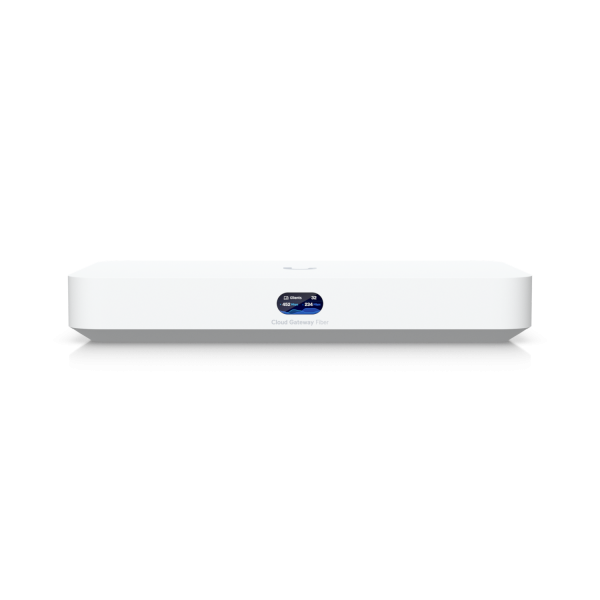

Preview: Ubiquiti UniFi Cloud Gateway Fiber • UniFi OS Console • 1x 10 GbE • 4x 2,5 GbE • 2x SFP+ • UCG-Fiber

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 241797
vendor: Ubiquiti
mnufacturer no.: UCG-Fiber
weight: 0.696kg
warranty: 12 months
Do you have any questions concerning this product?

Desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage and full UniFi... more

Close menu

Product information "Ubiquiti UniFi Cloud Gateway Fiber • UniFi OS Console • 1x 10 GbE • 4x 2,5 GbE • 2x SFP+ • UCG-Fiber"

Desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage and full UniFi application support.

Highlights:

Includes the complete UniFi application suite for device management
Manages over 50 UniFi devices and over 500 clients
5 Gbit/s routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port
NVMe SSD storage slot*

_{*NVMe SSD not included. A tray accessory is required for the installation of third-party SSDs.}

_{Technical data:}

Mechanical
Dimensions	212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2 inches)
Weight	696 g
Favourite material	Polycarbonate
Hardware
Processor	Quad-core ARM® Cortex®-A73 with 2.2 GHz
System memory	3 GB DDR4
NVR memory	Wählbare NVMe SSD up to 2 TB* ^{*No storage option does not include NVMe SSD. A tray accessory is required for the installation of third-party SSDs. 1/2 TB option includes tray accessory and NVMe SSD.}
Management interface	Ethernet Bluetooth
Network interface	LAN: (1) 10G SFP+ port (4) 2.5 GbE RJ45 ports WAN: (1) 10G SFP+ port (1) 10 GbE RJ45 port
PoE interface	(1) PoE+ (pair A 1, 2+; 3, 6-)
IDS/IPS throughput	5 Gbit/s
Power method	Power supply unit, 54 V DC, 1.1 A
Supported voltage range	100–240 V alternating current
Max. Power consumption	29.4 W (without PoE output)
PoE budget	30 watts
Max. PoE power per port through PSE	30 watts
Power range PoE mode	50–57 V direct current
ESD/EMP protection	Air: ± 4kV, contact: ± 8kV
LCM display	0.96" status display
Button	Factory reset
Operating ambient temperature	0 to 40 °C (32 to 104 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Gateway functions
Performance	Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application-, domain- and country-based QoS Application and device type identification Additional internet failover with LTE backup Reporting on internet quality and performance
Next generation security	Application-based firewall rules Signature-based IPS/IDS threat detection Content, country, domain and advert filtering VLAN/subnet-based traffic segmentation Complete stateful firewall
Advanced networking features	Licence-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN Teleport and Identity VPN with one click Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support
LEDs
Ethernet	Grün: Connection/activity . Yellow: PoE-powered
SFP+	Grün: Link/Activity
