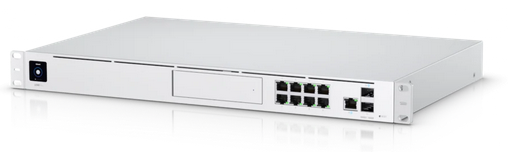

Ubiquiti Unifi Dream Machine PRO / Hardware Controller / Security Gateway / VideoNetworkRekorder / 2 SFP+ / 8 Gigabit-RJ45 / UDM-PRO-EU
- stock: 0
- part no.: 183327
- vendor: Ubiquiti
- mnufacturer no.: UDM-Pro
- EAN No.: 8178820273736
- weight: 5.18kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
UniFi Dream Machine Pro
UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and future UniFi controllers with a security gateway, 10G SFP + WAN, an 8-port Gbps switch and a standard 3.5-inch hard drive support.
Model: UDM-Pro-EU
Combines the new UniFi operating system with 8-port switch and security gatewayUniFi Protect Video & Surveillance NVR with commercial 3.5-inch hard drive support
8-port Gigabit switch with 1 Gbit / s RJ45 and 10 G SFP + LAN
Enterprise-class IPS / IDS, DPI and Wi-Fi AI functions With fast 1.7 GHz quad-core processor
.
The best experience for large networks
All-in-one 1U rack appliance for small and medium-sized businesses

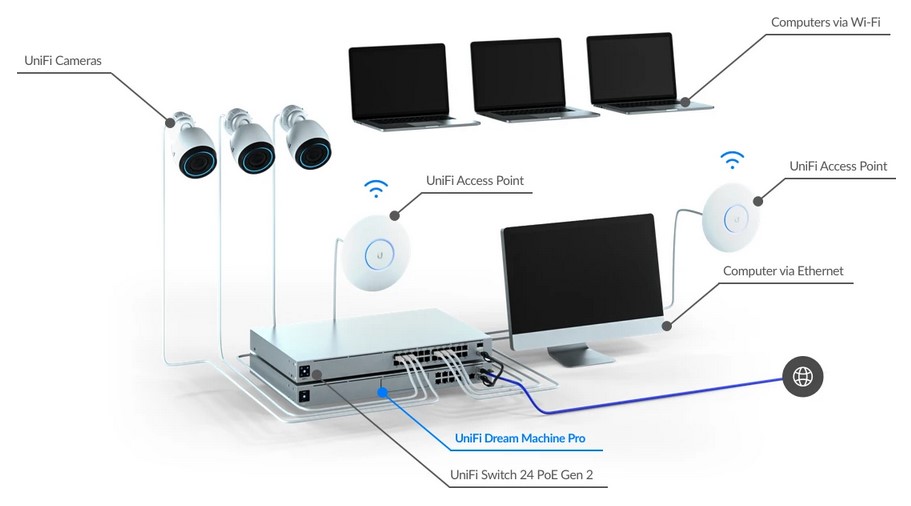

Seamless network integration
Use the UniFi Dream Machine Pro as a network controller
Security Gateway
The enterprise-class security gateway combines routing, 10 Gbps SFP + WAN, application visibility, VPN services and 3.5 Gbps full throughput for threat management in a single device.
Full-managed switch
Fully managed switch with 10 Gbit/s SFP + downlink and eight RJ45 GbE ports
Unifi network
Integrated network management system for all network elements with user-friendly and modern user interface. Wi-Fi AI automatically optimises the Wi-Fi network
. Unifi Protect
Professional video surveillance system

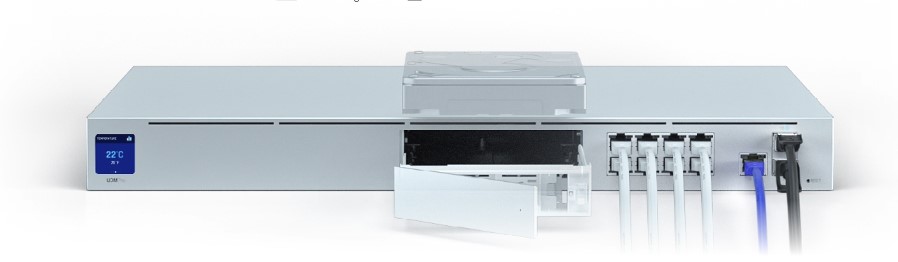

and NVR with integrated 3.5"/2.5" HDD slot for scalable storage.
Extended redundancy
The UDM Pro features two WAN ports with failover and U-LTE1 backup connectivity to ensure reliable access to the Internet. UniFi SmartPower USP-RPS2 provides redundant power in the event of an AC power outage.
Technical data:
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 3.9 kg (8.6 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System memory | 4 GB DDR4 |
| On-board storage | 16 GB eMMC |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (8) GbE RJ45 ports (1) 10G SFP+ port WAN: (1) GbE RJ45 port (1) 10G SFP+ port |
| IDS/IPS throughput | 3.5 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | (1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 33W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -10° to 40° C (14° to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | Licence-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Link/activity Green: 1G Amber: 10/100M |
| SFP+ | Link/activity White: 10G Green: 1G |
| HDD | White: disc activity Amber: disc error |
| RPS | Blue: ready |
