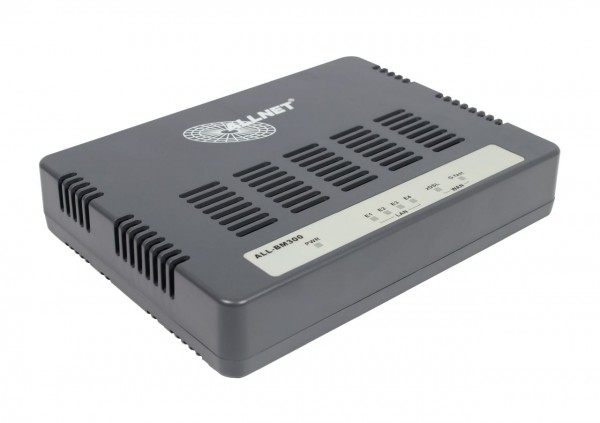

ALLNET ISP Bridge Modem g.fast / VDSL2 Profile 35b/17A

ALLNET ISP Bridge Modem g.fast / VDSL2 Profile 35b/17A
ALLNET ISP Bridge Modem g.fast / VDSL2 Profile 35b/17A
ALLNET ISP Bridge Modem g.fast / VDSL2 Profile 35b/17A

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

ALLNET ISP Bridge Modem g.fast with supervision / point-to-point modem VDSL g.fast via 2-wire... more
Product information "ALLNET ISP Bridge Modem g.fast / VDSL2 Profile 35b/17A"

ALLNET ISP Bridge Modem g.fast with supervision / point-to-point modem VDSL g.fast via 2-wire managed slave "ALL-BM300

Highlight:

  • Universal VDSL2 & G.Fast Bridge Modem
  • Supports VDS2 / VDSL2 Vectoring (100Mbit) and Super-Vectoring 35b (250Mbit DeutscheTelekom connections)
  • Supports g.fast 106MHz and g.fast 212MHz profile
  • Integrated splitter for simultaneous analog telephony and broadband via the 2 wire pair.
  • In combination with ALL-BM310 bridge master, it can be used as point-to-point g.fast solution.

The ALLNET ALL-BM300 is a multi VDSL2 & G.fast Bridge Modem, which allows you to access the VDSL2 Internet in a fast and easy way. The modem is simply connected to a broadband router, firewall PC or MAC, no further settings are necessary (for VLAN settings a VLAN ID can be configured in the web interface). Only your router/firewall/PC etc. needs to be connected to the LAN port/connection.

It is ITU-T compliant and complies with the G.9700/9701 standard and supports the G.fast 106/212 double wave profile. The bandwidth is up to 1 Gbps symmetrical data transmission and is perfectly suited for FTTpd/FTTN applications. The ALL-BM300 is a cost-effective solution that provides end users with high-speed Internet access over existing copper wire infrastructure. ALL-BM300 is also backward compatible with VDSL2 Super-Vectoring Profile 35b and VDSL2 Profile 17A.

Technical Details:

Features:

  • Compliant with IEEE 802.3 / 802.3u / 802.3ab Ethernet Standard
  • Compliant with ITU-T G993.2 VDSL2 standard (ALL-BM300 only)
  • Compliant with ITU-T G998.4 G.INP standard (ALL-BM300 only)
  • Compliant with ITU-T G.9700/G.9701 G.fast standard
  • Backward compatible VDSL2/V35b (ALL-BM300 only)
  • Support 106a/ & 212a/ dual G.fast band profile
  • Support super Vectoring for V35b / G.fas(ALL-BM300 only)
  • Support Vectoring for VDSL2(ALL-BM300 only)
  • Support High Bandwidth up to 1Gbps
  • Support USB 3.0 for connecting USB Dongle
  • Support static routing for IPv4 and IPv6 forwarding(ALL-BM300 only)
  • Mac Address based filtering
  • Support 8 queue MFC/DSCP both type QoS
  • Support HTTP/HTTPS web management
  • Support SSL security
  • Support remote management and monitor
  • Support configuration backup and restore
  • On board surge protection for Line port
  • Support bridge(switch) / Router mode(ALL-BM310 Master only)
  • Support RJ-11 / Terminal block combo line port
  • Support NTP Time Server.
  • Support TR-069.
  • On board POTS/ISDN splitter
  • Support Jumbo frame(MTU) up to 1600 bytes
Specifications
Standards
  • IEEE802.3/802.3u/802.3ab standards
  • ITU-T G9700/G9701 standards
  • ITU-T G993.2/G998.4 standards (ALL-BM300 only)
Physical Interface
  • 4 x RJ-45 10/100/1000 Mbps Ethernet port
  • 1 x RJ-11 / Terminal block combo for line port
  • 1 x RJ-11 connector for POTS/ISDN phone device
  • 1 x Reset Button for resetting to factory default
  • 2 x USB3.0 for connecting USB dongle
Button
  • 1 x Power LED
  • 4 x Link/Active Status for Ethernet port
  • 1 x Link LED for G.fast mode
  • 1 x Link LED for xDSL mode
Routing
(ALL-BM300 only)
IP Multicast, IGMP Proxy, Snooping
Static Routing IPv4, IPv6 forwarding
DHCP Server/Relay/Client IPv4/IPv6
DNS Proxy and Relay, NTP Client
Firewall  IPv6 Firewall
Packet, URL filtering
Parental Control, DMZ Host
Input Power DC 12V / 2A including
Dimensions:  196mm x 146mm x 40 mm ( 7.72" x 5.75" x 1.57”)
Net weight: approx. 0.4 kg
Temperature 0°~50° C (Operating), -20° ~70° C (Storage)
Humidity  10 - 90% non-condensing
Marks
  • CE
  • FCC
  • RoHS Compliant
Package Contents:
  • 1x ALL-BM300
  • 1x 12V/2A Powersupply
  • 1x Patchcale
  • 1x QIG
