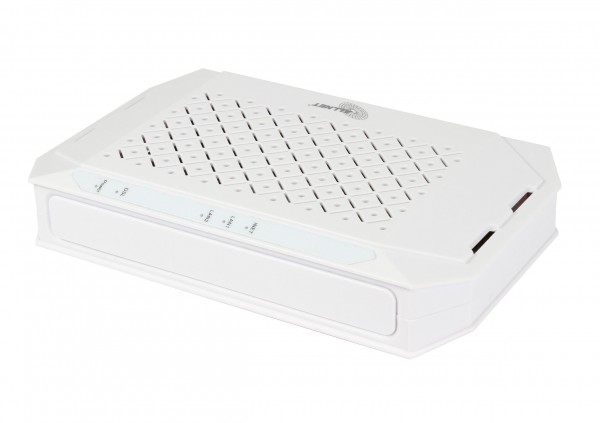

ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"
![Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"](https://shop.allnet.dk/media/image/06/8c/ac/Image4555101c6bf8b8f10e94_200x200.jpg "Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"")
![Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"](https://shop.allnet.dk/media/image/8c/d4/7a/Imagedbd01a07fc2293bff909_200x200.jpg "Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"")
![Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"](https://shop.allnet.dk/media/image/73/eb/17/Image0c07fa416e946839a714_200x200.jpg "Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"")
![Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"](https://shop.allnet.dk/media/image/75/18/56/Image542ff243d76657c35886_200x200.jpg "Preview: ALLNET ISP Bridge Modem VDSL2 / Supervectoring 35b with Vectoring "ALL-BM210VDSL2SV"")
- stock: 0
- part no.: 195704
- vendor: ALLNET
- mnufacturer no.: ALL-BM210VDSL2SV
- EAN No.: 4038816195708
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
manual
2
Handbuch EN
EU RoHS und REACH Erklärung
VDSL2 Plug and Play Bridge Modem for provider VDSL connections such as Telekom, Vodafone, QSC etc. or as a CPE modem for DSLAM installations in hotels or hospitality environments
Highlights:
- Bridge modem according to VDSL2 standard for high data throughput
- Automatic speed setting for VDSL2 port
- Future-proof VDSL2 technology up to 250Mbps with vectoring & supervectoring
- VDSL2 & VDSL Supervectoring compatible
- Vectoring 100Mbit connections & Supervectoring 250Mbit connections 35b compatible
- 2x LAN ports for DSLAM applications (thus no extra switch is required in the hospitality environment)
The ALLNET ALL-BM2100VDSL2V is a VDSL2 bridge modem that gives you quick and easy access to the VDSL2 Internet.
The modem is simply connected to a broadband router, firewall PC or MAC. Further settings such as VLAN IDs may need to be made in the web interface.
Only your router/firewall/PC etc. needs to be connected to the LAN port/connection. The modem has 2 LAN ports and is the ideal counterpart when DSLAMs and hospitality solutions are offered. This means DSLAM and 2-wire technology in the hospital room / hotel room etc.. This means that a second switch is not required in the hotel room/hospital room.
ADSL2/VDSL2 Installation:
Technical details:
|
Element |
Specification |
|
Chip set: |
Broadcom BCM63178 |
| Physical Interface: |
IEEE 802.3 10Base-T, 802.3u 100Base-TX 2x RJ-45 10/100/1000Mbps LAN Reset button (factory reset) |
|
Standards: |
VDSL2 |
|
Indicators: |
Power,LAN1/2,DSL,INET |
|
Features: |
- Supports G.993.5 vectoring - Interoperable with major VDSL2 chipsets - Supports up to VDSL2 profie 30a - Supports up to 250 Mbps symmetric - 802.1q VLAN tagging - Configuration - TR69: Manage settings and updates remotely from any end equipment - Default: off |
|
Power: |
DC 12V / 0.5A |
|
Dimensions: |
106mm x 171mm x 37mm |
| Temperature: | 0~40° C (Operating), -30 ~60° C (Storage) |
| Humidity: | 10 - 90% non-condensing |
| Marks: | CE, RoHS Compliant |
