ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/87/3f/5f/Id932e5bbe06bb113709781c80ed93e406d666caf_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/09/37/c3/I6cd23ea6d24325f6f7d9b7460ef5a995c2861b5f_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/ef/f6/29/Id3e39fb9e9ffb8e42b9d804bf3981aca2d7f2c7c_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/ca/8d/57/Ifeb4518518d27357173f93d029ec314d8aaf2b86_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/70/05/6d/Icaa8203b0fdcb1019e1804ae74c610fac56bbc90_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/43/5f/2f/Idcf65b3ad55bfffd66be07b90ee2246a15c0b15e_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/54/ff/c4/I4d4dc84fbe4104206f0168f594e5c87b913524ea_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
![Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit](https://shop.allnet.dk/media/image/fd/e4/df/Idae51672768670a11d79023c5f33fed15f95e11d_200x200.jpg "Preview: ALLNET Media Converter Network & PoE over 2 Wire Set AF/AT "ALL-MC302v2P2WIRE-Set" incl. external power supply unit")
- stock: 0
- part no.: 195451
- vendor: ALLNET
- mnufacturer no.: ALL-MC302P2WIRE-Set
- EAN No.: 4038816106520
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
Handbuch EN
EU RoHS und REACH Erklärung
Highlights:
- PoE and power via two-wire
- IEEE802.3af & now NEW for v2 series: IEEE802.3at
- Data rate max. 200Mbps
- Maximum distance: 500m via two-wire
- The master requires a 48VDC~57VDC power supply unit which is included, for optional power supply units see accessories
- Incl. power supply
Overview

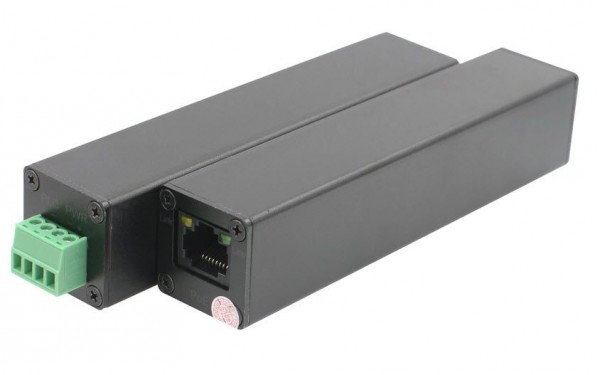

The ALL-MC302v2P2WIRE set offers you the option of setting up both data and PoE via a 2-wire connection. The max. Cable length can be max. 500m. The master must be supplied with power via a power supply unit and supplies both the slave adapter and the PoE end device on the slave with data and power. The set is suitable for upgrading analogue systems through an existing cable infrastructure. The compact size of the media converter is perfect for replacing old door stations with a new IP door station.
Dimension:
Interface description:
Connection diagram:
Table power, bandwidth and distance
|
Receiver <- -> Transmitter |
Cable 2×0.75 mm² |
||
|
Receiver power supply type |
DC 48-56 (30 W) |
DC 48-56 (60 W) |
|
|
Distance 100 M |
Bandwidth (Mbps) |
83 |
83 |
|
PoE (W) |
27 |
27 |
|
|
Distance 200 M |
Bandwidth (Mbps) |
82 |
82 |
|
PoE (W) |
26.5 |
27 |
|
|
Distance 300 M |
Bandwidth (Mbps) |
80 |
80 |
|
PoE (W) |
26.3 |
27 |
|
|
Distance 400 M |
Bandwidth (Mbps) |
78.2 |
78.2 |
|
PoE (W) |
22.8 |
27 |
|
|
Distance 500 M |
Bandwidth (Mbps) |
76 |
76 |
|
PoE (W) |
18.2 |
26.5 |
|
|
Receiver <- -> Transmitter |
Coaxial cable |
||
|
Receiver power supply type |
DC 48-56 (30 W) |
DC 48-56 (60 W) |
|
|
Distance 100 M |
Bandwidth (Mbps) |
84.2 |
84.2 |
|
PoE (W) |
26.6 |
27 |
|
|
Distance 200 M |
Bandwidth (Mbps) |
83.4 |
83.4 |
|
PoE (W) |
26.2 |
27 |
|
|
Distance 300 M |
Bandwidth (Mbps) |
82 |
82 |
|
PoE (W) |
26 |
27 |
|
|
Distance 400 M |
Bandwidth (Mbps) |
80 |
80 |
|
PoE (W) |
22.2 |
27 |
|
|
Distance 500 M |
Bandwidth (Mbps) |
79 |
79 |
|
PoE (W) |
17.8 |
26 |
|
Note:
Actual data speed and PoE performance may vary depending on environmental conditions and cable quality.
Technical details:
Ethernet |
|
|
Network standards |
IEEE 802.3 10BaseT |
| Up down Agreement | CSMA/CA |
| Transmission / Rate | 500Mbps Physical Bandwidth 88Mbps Transmission Speed |
|
Cabling |
Cat5 or above |
|
Maximum Distance |
100m |
|
Connector |
1x RJ45 |
Twisted pair |
|
|
Cabling |
Twisted pair |
|
Connector |
2-pin terminal block |
|
Distance |
up to 500m@24AWG |
|
Datarate downlink |
Up to 500Mbps |
|
Datarate Uplink |
Up to 500Mbps |
| Technology |
Powerline Communication (PLC) |
Electric and Mechanical |
|
|
Input Power |
48-57VDC (terminal block) |
|
Power Consumption |
=3.5W / PC |
|
PoE standard |
IEEE802.3af / IEEE802.3af "ONLY FOR v.2 SERIES" |
|
Output power |
Standard 48VDC; IEEE802.3af / IEEE802.3at "from v2 series" |
|
Port |
RJ45 |
|
Dimming (W x D x H) |
123mm x 26mm x 26mm |
|
Weight |
0.25kg |
|
Casing |
Aluminium case |
Environmental |
|
| Operating Temperature | -20°C to 60°C |
|
Relative Humidity |
<95% (Non-condensation) |
