ALLNET PoE Injector Gigabit PoE & PoE+ (15,4W/30W) / plastic

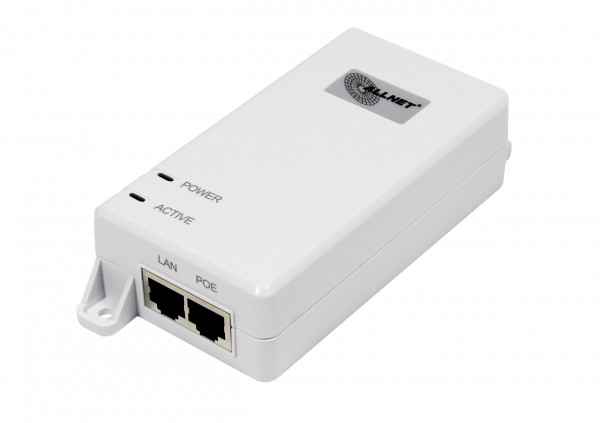

Preview: ALLNET PoE Injector Gigabit PoE & PoE+ (15,4W/30W) / plastic

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

declaration of conformity

EU RoHS und REACH Erklärung

stock: 0
part no.: 186548
vendor: ALLNET
mnufacturer no.: ALL0488v6
EAN No.: 4038816098450
weight: 0.22kg
warranty: 24 months
Do you have any questions concerning this product?

ALLNET PoE Injector Gigabit PoE & PoE+ (15,4W/30W) / plastic housing / "ALL0488v6... more

Close menu

Product information "ALLNET PoE Injector Gigabit PoE & PoE+ (15,4W/30W) / plastic"

ALLNET PoE Injector Gigabit PoE & PoE+ (15,4W/30W) / plastic housing / "ALL0488v6

Highlights:

PoE injector according to IEEE802.3af/at with max. power of 30W
2x RJ45 Gigabit Ports
PoE Output 55VDC@30W Midspan PoE PIN's 4/5 (+) and 7/8(-)
internal power supply unit
compact design
incl. 1.5m power cable with IEC-C5 to IEC-CEE7 protective contact cable
NEW: Wall mounting capable

Intelligent power supply via network without switch

With the ALLNET ALL0488V6 Power over Ethernet Injector you can install your PoE-enabled IP devices such as WLAN access points, VoIP phones and much more absolutely independent of existing power sockets.

For example, WLAN access points can be installed in the most ideal locations in a building without having to worry about power cabling.

Switches that are not PoE-capable can be "retrofitted" with Power over Ethernet at a reasonable price, especially if only a few ports with PoE supply are required. Here, the ALL0488V6 saves the purchase of a PoE switch.

The ALLNET ALL0488V6 supports the IEEE802.3af & IEEE802.3at standard with a maximum power of 30W Watt.

The ALL0488V6 does not need to be configured. It has an RJ45 input socket and an RJ-45 output socket, which is used to connect the switch and terminal device to the PoE injector. The cable length here can be up to 100 meters between switch and terminal device in total, as is usual in Ethernet.

Due to its compact design, the ALLNET ALL0488V6 can be installed very easy. It has an internal power supply and supplies the PoE voltage on pins 4/5 (+) and 7/8 (-).

Technical Details:

Element	Specifikation
Standards:	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at, PoE++ RoHS Compliance WEEE Compliance
Ethernet Ports:	1x RJ45 10/100/1000 Mbps for connection to switch or hub 1x RJ45 10/100/1000 for connection to PoE end device
PoE Output:	PoE IEEE802.11af/at, Power pins: 4/5(+) 7/8(-)
Power supply:	100 - 240VAC, internal power supply / Output: 55V/550mA incl. connection cable earth contact on IEC320-C5 "Kleeblat/Micky-Mouse" approx. 80cm length
Power consumption:	30 Watt maximum with connected PoE end device
AC Surge Protection:	1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE
Housing:	Plastic housing
Mounting:	Wall-mounted
Dimensions:	length/width/height: 140 x 63 x 33 mm
Environment:	Operating Temperature: 0 ~ 40 °C Operating Humidity 10% ~ 90% (non-condensing) Storage Temperature: -20 ~ 90 °C Storage Humidity: 10% ~ 90% (non-condensing)
EMI:	FCC CFR47 Part 15 EN55024 EN55032
EMS:	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity:	IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall)
Marks:	CE; FCC

Produktmerkmale:

Einsatzbereich:	Indoor
Gehäuse:	Kunststoff
Geschwindigkeit Injektor:	1G (1000Mbit), 10M (100Mbit), 100M (100Mbit)
PoE Leistung:	15, 30
PoE Standard:	IEEE802.3af, IEEE8023at
