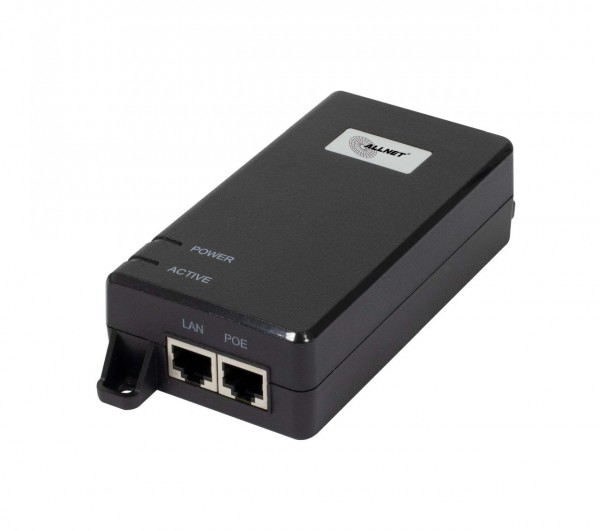

ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".
![Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".](https://shop.allnet.dk/media/image/0f/fe/9a/AIMG61305191C5_200x200.jpg "Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".")
![Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".](https://shop.allnet.dk/media/image/ec/c3/75/AIMG4BD4F3E209_200x200.jpg "Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".")
![Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".](https://shop.allnet.dk/media/image/6e/59/04/AIMGDDFD375072_200x200.jpg "Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".")
![Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".](https://shop.allnet.dk/media/image/93/35/63/AIMGB40413F5D0_200x200.jpg "Preview: ALLNET PoE Injector 1G/2.5G/5G PoE & PoE bt (15.4W/30W/60W) / plastic housing / "ALL-PI102-5G".")
- stock: 0
- part no.: 211682
- vendor: ALLNET
- mnufacturer no.: ALL-PI102-BT60-5G
- EAN No.: 4038816211682
- weight: 0.255kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
Handbuch EN
EU RoHS und REACH Erklärung
ALLNET PoE Injektor 1G/2.5G/5G PoE & PoE bt (15,4W/30W/60W) / Kunststoffgehäuse / "ALL-PI102-5G"
Highlights:
- Entspricht dem Standard IEEE802.3af/at/bt
- Multi-G Standard, Unterstützt 10/100/1000/2500/5000Mbps
- Unterstützt PoE-Leistung bis zu 60W
- Strom und Daten auf bis zu 100m
- Plug-und-Play, erfordert keine Konfiguration
- kompaktes Kunststoffgehäuse
- PoE Leistung 55VdC mit max. 1.1A PoE PD über 4 Paare.
Our PoE Injector - Powerful and Reliable
Our PoE Injector complies with the IEEE802.3af/at/bt standards and is the ideal solution to ensure power delivery to your PoE-enabled devices. Supporting speeds of 10/100/1000/2500/5000Mbps, it offers the necessary bandwidth for seamless data transmission.
What sets this Injector apart is its impressive PoE power delivery of up to 60W, which is more than sufficient to power demanding devices while maintaining stable and reliable power even over distances of up to 100 meters.
Installation is a breeze, as our PoE Injector is a plug-and-play device that requires no complex configuration. Its compact plastic housing provides a space-saving solution without compromising on robustness.
With a PoE power delivery of 55V DC and a maximum of 1.1A PoE PD over 4 pairs, our PoE Injector offers the required power to get your devices up and running. Rely on our technology to meet your PoE requirements and optimize your network
Technical Details:
|
Model |
ALL-PI102-5G |
|
Port |
Data in: 1x10/100/1000/2500/5000Mbps RJ45 Port |
| Standards | - IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-Tx Fast Ethernet - IEEE802.3ab 1000Base-T Gigabit Ethernet - IEEE802.3bz 2.5GbE/5GbE NBASE-T - Full compliant with IEEE802.3af/at, PoE++ - RoHS Compliance - WEEE Compliance |
|
PoE Standard |
IEEE802.3af/at/bt |
|
PSE Power on RJ-45 |
4Pairs power lines: |
|
PoE Power Output |
55V DC, 1,1A Max. |
|
Power supply |
60W |
|
Input Power Supply |
AC 100-240V 50/60Hz |
|
Operation Temperature |
0°C ~ 40°C |
|
Storage Temperature |
-20°C ~ 70°C |
|
Operation Humidity |
10%~90% RH non-condensing |
|
Storage Humidity |
5%~90% RH non-condensing |
|
Dimensions (L*W*H) |
145,51mm x 65,8mm x 33,5mmm |
| Weight | 255g |
| Mounting | Wall-mounted |
| IP Rated | IP40 |
|
LED Indicator |
Power Indicator : Green |
|
Network Media(Cable) |
10BASE-T: UTP category 3, 5 cable (≤100m) |
|
Surge Protection |
- Line-Earth 1.2/50us (8/20us): 2KV |
|
Immunity |
- IEC60068-2-6(Vibration) |
|
EMS |
- IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) - IEC61000-4-3(RS) 10V/m(80MHz~2GHz) - IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV - IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM - IEC61000-4-6(CS) 10V(150kHz~80MHz) |
| EMI | - FCC CFR47 Part 15, EN55024, EN55032 |
| Marks | - cUL/UL - FCC - CE |
Produktmerkmale:
| Einsatzbereich: | Indoor |
| Gehäuse: | Kunststoff |
| Geschwindigkeit Injektor: | 1G (1000Mbit/s), 2.5G (2500Mbit/s), 5G (5000Mbit/s), 10M (10Mbit/s), 100M (100Mbit/s) |
| PoE Leistung: | 15, 30, 60 |
| PoE Standard: | IEEE802.3af, IEEE802.3bt, IEEE8023at |
