net price plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- stock: 0
- part no.: 193972
- vendor: ALLNET
- mnufacturer no.: ALL-RJ45-Magnet
- EAN No.: 4038816193971
- weight: 0.029kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloadsdeclaration of conformity data sheet DE data sheet EN data sheet ES data sheet FR EU RoHS und REACH Erklärung

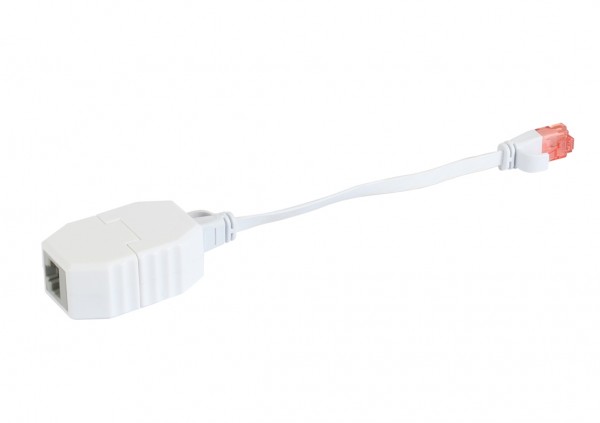

ALLNET RJ45 fuse coupling, drop socket, PoE capable, up to 10GBit, ABS-Housing
With this coupling you can easily and effectively protect your valuable IT equipment from damage. The two parts are fixed by magnetic contacts and detach if the tensile load is too high. This prevents RJ45 sockets from being torn out and devices from being destroyed through carelessness. This security product from ALLNET was developed especially for our hospitality customers and IT system houses. The standard specifications for the release force of RJ45 plugs and sockets according to IEC 60603-7 is higher than that of our ejector socket. This ensures that the connection between the two magnetic couplings always falls apart before any damage to the device occurs. An unintentional disconnection of the magnetic connection is nevertheless not possible.
You can continue to use the existing infrastructure because the connector supports all types of RJ45 connectors, from Cat5-Cat6a, PoE according to IEEE 802.3 af/at/bt (90Watt) and up to 10GBit.
Protect your equipment!
This device complies with the EC directive 2002/95/EC (RoHS). One set in PE bag with QIG
Specification: RJ45 / RJ45 safety coupling with magnetic contacts.
Power over Ethernet according to IEEE 802.3 af/at/bt -90 Watt
average mating cycles: >= 750
Socket according to connector standard IEC 60603-7-51
Data transfer rate: up to 10 GBit IEEE 802.3an
Data transmission: bidirectional, full duplex
Adapter type: inactive
Temperature range: -20°C to 85°C
Connectors: Neodymium Pogo Pins 2x4-pole
Material socket: ABS plastic
Material of housing cover: ABS
Colour of housing: white
Scope of delivery:
1x ejector plug (2-piece).
1xPatch cable RJ45, CAT6 250Mhz, 0.15m white, UTP(U/UTP), PVC, flat, Synergy 21,
